RICOH Portable LCD 150BW 15.6" 16:9 1920x1080 OLED 1ms 100,000:1 Wireless/Miracast USB-C/Li-Ion Battery Powered
Kód: 1161316Na dotaz
Termín a způsob doručení
Rozlišení displeje:1920x1200; Úhlopříčka displeje ("):15.6; Vlastnost:Dotykový; Rozhraní:USB Type-C.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1161316
Záruka:
36 Měsíc(ů)
Stav:
Novinka
Rozlišení displeje:
1920x1200
Rozhraní:
USB Type-C
Vlastnost:
Dotykový
Úhlopříčka displeje ("):
15,6
Popis RICOH Portable LCD 150BW 15.6" 16:9 1920x1080 OLED 1ms 100,000:1 Wireless/Miracast USB-C/Li-Ion Battery Powered
https://www.pfu-emea.ricoh.com/en-gb/hardware/meeting-devices/portable-monitor-150bw

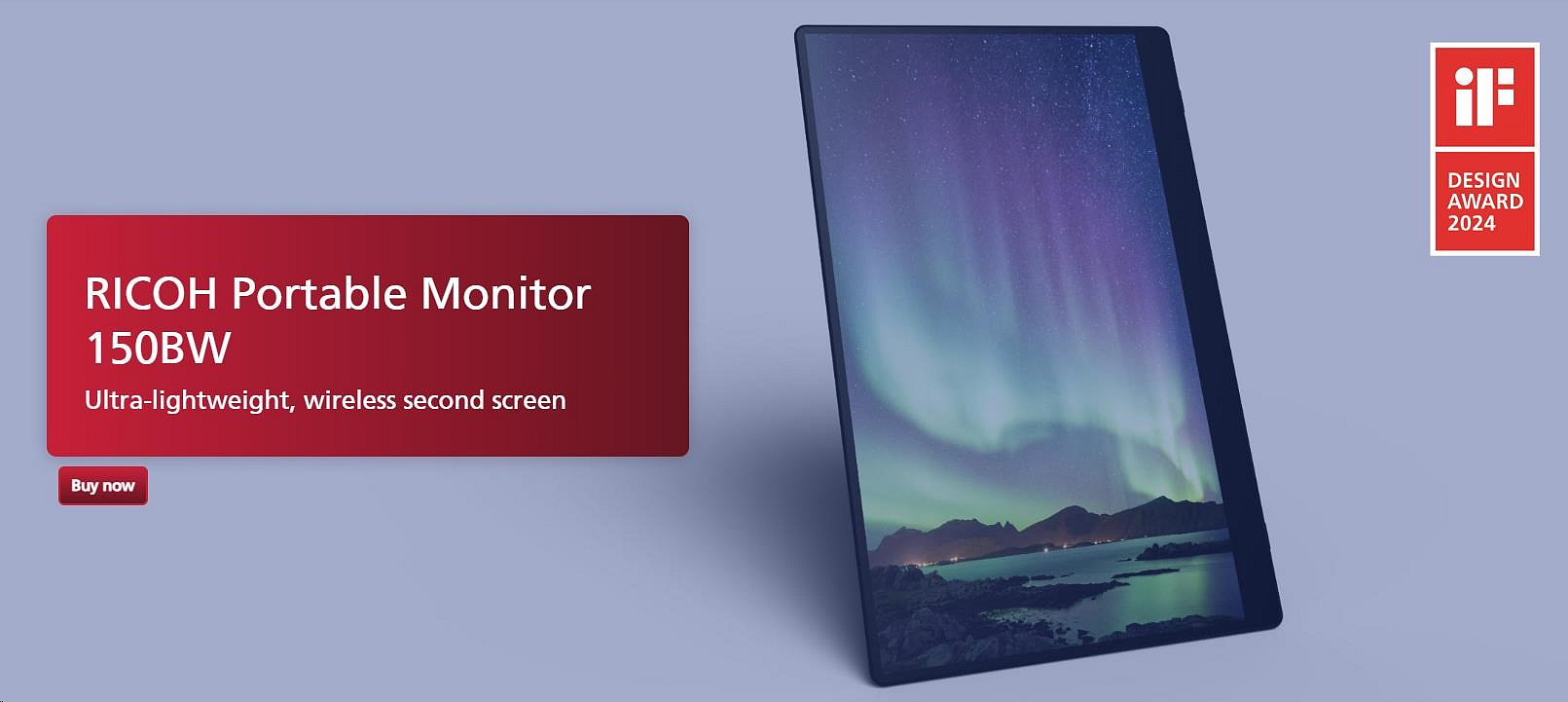

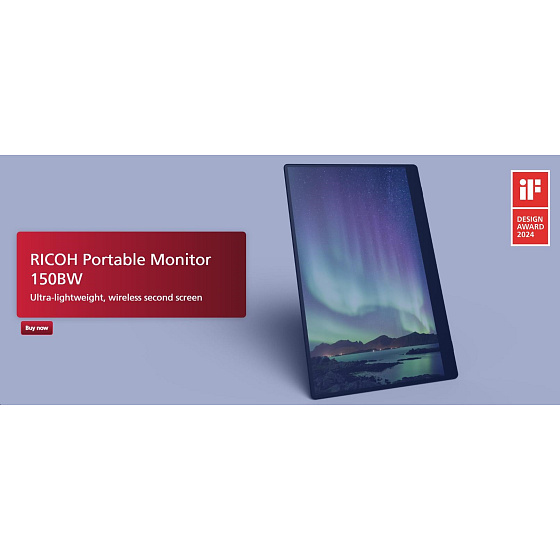

RICOH Portable Monitor 150BW
Specifically designed for today’s meeting requirements and hybrid working environments, the RICOH Portable Monitor 150BW makes meetings more productive and engaging.
The battery powered model weighs just 715g providing an accessible ultra-lightweight second screen that is easy to carry, set up and use in small spaces or when travelling. The RICOH Portable Monitor 150BW can also be easily handed to customers or colleagues for a more personal, engaging sharing meeting experience.
The high-quality, high-contrast screen delivers vivid images, making content easier to consume, review and create, and the touchscreen (with optional stylus) enables users to work collaboratively, quickly and clearly. It enables users to highlight text and graphics on shared content, directly draw on or annotate content, for instant capture of feedback and fast, efficient communication of thoughts and ideas.
- Battery powered
- 715g: ultra-lightweight - easy to carry, set up and use anywhere
- 15.6-inch OLED screen for high-quality, high contrast vivid images
- Fully wireless capabilities — 1-step wireless connection with the Auto Cast app
- 10-point multi-touch touchscreen — with touch-back function
- Multicast capability without external dongle — simultaneously connect with up to 32 units
The powerfully RICOH Portable Monitor 150BW provides an accessible second screen experience that’s easy to carry, set up and use anytime, anywhere. At just 715g, it’s ultra-lightweight for such a large, high-quality, high contrast 15.6-inch OLED panel.
The Portable Monitor offers value for both one-to-one meetings or larger groups, and for face-to-face or hybrid meeting formats, whether in or out of the office. Using the 10-point multi-touch touchscreen (with or without stylus), users can work collaboratively, quickly and clearly by highlighting text and graphics on shared content. And it’s all backed by the reassurance of quality, performance, and reliability of a trusted technology brand.
| Product Name | RICOH Portable Monitor 150BW | |
|---|---|---|
| Energy efficiency |  | |
| Security | Link to PSTI Compliance Statement | |
| Display panel | Display method | OLED (Organic Light Emitting Diode) |
| Maximum resolution | 1920 x 1080 | |
| Brightness (max)*1 | 300 nit (=cd/m2) | |
| Contrast | 1:100,000 | |
| Display colours | 8bit+2bit FRC (maximum number of colours: Approx. 1.07 billion colours) | |
| Panel size | 15.6 inches | |
| Refresh rate | 60Hz | |
| Colour gamut | DCI P3 100% | |
| Viewing angle | 85° or higher | |
| Response time | 1ms | |
| Blue light cut | Eye Care Display certified | |
| Number of simultaneous display units | Max. 2 units (wireless) | |
| Touch panel | Protective glass | Toughened glass, AF (anti-fingerprint) coating |
| Detection method | Active electrostatic coupling method (AES2.0) | |
| 10-point multi-touch*2 | Wired/ Wireless connection: Supported (Windows®/ Android™) | |
| Interfaces | Back side | USB Type-C® 2 (External power supply/ DisplayPort™ signal input function supported) |
| Screen wireless communication method, Encryption | Miracast®*3 WPA2™ PSK | |
| Supported wireless LAN standard | IEEE802.11 b/g/n (2.4 GHz), IEEE802.11 a/n/ac (5 GHz) | |
| Audio | Built-in speaker | 1.5W x 2 |
| Power supply (external) | Input method | USB Power Delivery (USB Type-C® powered) |
| Input*4 | Max. 45W (5V/3A, 9V/3A, 15V/3A, 20V/2.25A) | |
| Output (power pass through)*5 | Max. 25W (5V/0.9A, 9V/0.77A, 15V/1.66A, 20V/1.25A) | |
| ON mode power consumption | 15.5 W or less | |
| Standby mode power consumption | 0.2 W or less | |
| Internal battery | Type | Lithium-ion battery |
| Capacity | 3740mAh | |
| Charging time | Approx. 2.5 hours*6 | |
| Operating time (when fully charged) | Continuous operating time: 3 hours*7 | |
| Environment | Operating temperature | 0~35°C |
| Operating humidity | 10-80% (without condensation) | |
| Continuous operating time | 20 hours*8 | |
| Weight (main unit only) | 1.58lb (715g) | |
| Dimensions (main unit only) | 356.0 x 10.8 x 221.7mm (thinnest part: 4.8mm) | |
| Screen installation angle | Landscape orientation | Free stop (Approx. 75–16°), Recommended angle for writing: Approx. 16° |
| Portrait orientation | Approx. 70° | |
| Certification supported Certificates | | |
| Main unit warranty period | 3 years Warranty Advance Exchange Service | |
*1The brightness varies depending on the input mode video adjustment settings, etc. Brightness will also deteriorate over time. It does not maintain a constant brightness.
*2Touch-and-handwriting features and display accuracy are essentially dependent on the handling of OS or each application. Handwritten images may appear erroneously due to Miracast® process properties when wirelessly connected.
*3SSE (Smart Streaming Engine) is used. The free software products listed below are required to connect wirelessly over Mac PC and iPhone.
*4If the input power is insufficient according to the specifications of this unit, the operation may become unstable.
*5Depending on PC or smartphone specifications, pass-through may not be possible or there may be restrictions on the operation of the unit.
*6When charging in an environment of 16 to 35 ° C.
*7It is a guideline on output condition according to our measuring method, and it changes according to operating conditions.
*8Due to the nature of organic EL, there is a possibility that an afterimage may remain on the display when a still image or still character is displayed for a long time. This product is not designed for continuous operation of more than 20 hours. Use of the product beyond the specifications of continuous operation time may shorten the life of the main unit. It is not guaranteed to connect to all PCs and smartphones. The wireless connection may become unstable during high-load operation on a PC or smartphone or due to the surrounding radio wave conditions.
Free Software
| Product Name | Overview | |
|---|---|---|
| RICOH Monitor Auto Cast for Windows® | Enables Miracast wireless connection in 1-step. | |
| RICOH Monitor Multicast for Windows® | Allows simultaneous connection with up to 32 units of the RICOH Portable Monitor 150BW and touch-operation from one of them. | |
| RICOH Monitor Mirroring for macOS | Mirrors the display of one Mac PC to one RICOH Portable Monitor 150BW | |
| RICOH Monitor Mirroring for iOS | Mirrors the display of one iPhone to one RICOH Portable Monitor 150BW | |
A PC or smartphone with the same software installed can be connected to a RICOH Portable Monitor 150BW on the same network (same subnet). Speed depends on your network environment.
Compatible with Windows® 10 or higher, Android™ 9 (or higher), macOS® 12 (or higher) and iOS® 15 (or higher). Connecting with macOS® & iOS® requires a dedicated app. Touch operation not supported with macOS® & iOS®.
Package contents
- RICOH Portable Monitor 150BW
- 1 x USB Type-C® cable
- 4 x Cable clamps
- Sleeve case
- Warranty card
- Read This First
- Quick Guide
- Licence Code for "RICOH Monitor Multicast for Windows®"
, ,
