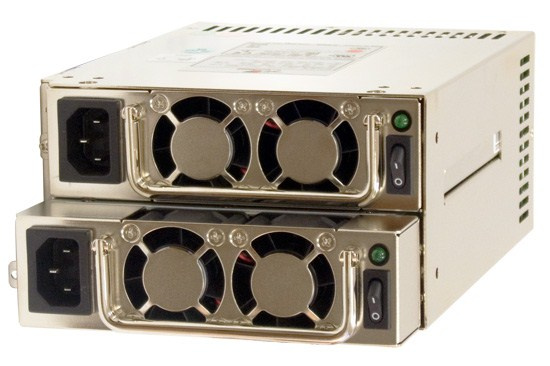

CHIEFTEC redundantní zdroj MRG-5700V, 700W, 80+
Kód: 1022297Na dotaz
Termín a způsob doručení
Formát zdroje:1U, ATX; Výkon zdroje (ve W):700; Efektivita zdroje:80 Plus; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022297
EAN:
1022297
Záruka:
24 Měsíc(ů) Měsíců
Formát zdroje:
ATX, 1U
Konektory:
PCIe 8-pin, FDD, Molex, SATA 15-pin
Konektory pro základní desku:
ATX 24-pin, EPS 8-pin
Efektivita zdroje:
80 Plus
Modulární kabeláž:
Ne
Výkon zdroje (W):
700
Popis CHIEFTEC redundantní zdroj MRG-5700V, 700W, 80+
http://www.chieftec.eu/en/psus/redundant-psus/mrg-5700v.html
Performance:
| AC Input:
| 100V / 9A | 240V / 5A
|
| Frequency:
| 47-63 Hz
|
| +5V:
| 32A
|
| +3,3V:
| 32A
|
| +12V1:
| 57A
|
| +5V & +3,3V combined:
| 190W
|
| +5V & +3,3V +12V1 combined:
| N/A
|
| P.F.:
| >0,9
|
| -5V:
| N/A
|
| -12V:
| 0,8A
|
| +5VSB:
| 3,5A
|
| Maximum Load:
| 700W
|
Connectors (native cables):
| 20+4PIN:
|
| ===550mm===[24PIN]
|
| SATA:
|
| ===550mm===[SATA]===200mm===[SATA]
|
| SATA:
|
| ===550mm===[SATA]===200mm===[SATA]
|
| SATA:
|
| ===550mm===[SATA]===200mm===[SATA]
|
| Molex:
|
| ===550mm===[Molex]===200mm===[Molex]
|
| Molex:
|
| ===550mm===[Molex]===200mm===[Molex]
|
| Molex/Floppy:
|
| ===550mm===[Molex]===200mm===[Floppy]
|
| 8PIN PCIe (6+2):
|
| ===550mm===[PCIe]
|
| 8PIN EPS:
|
| ===550mm===[8PIN]
|
| 8PIN EPS (4+4):
|
| ===550mm===[EPS]
|
| 6PIN PCIe:
|
| ===550mm===[PCIe]
|
| TTL signal cable (red/black):
|
| ===1140mm===[2PIN]
|
| Buzzer reset cable (yellow/black):
|
| ===740mm===[2PIN]
|
| System power LED (red/black/green):
|
| ===1130mm===[LED]
|
Features:
| Specification:
| ATX 12V 2.3
|
| Form faktor:
| PS II
|
| Efficiency:
| >80%
|
| Dimension (DxWxH):
| 210 mm x 150 mm x 87 mm
|
| PFC:
| Active PFC (0,9)
|
| Fan:
| 40mm fan (2x 40mm pro Module)
|
| Security:
| Metal frame
|
| 2 x 700W Module
| |
| TTL-Signal
| |
| Buzzer- & LED Alarm
| |
| Hot-swap, hot-plug features
| |
| Full range Eingang 100V~240V
| |
| Meet FCC, CISPR EMI regulation
| |
| Balanced load sharing design
| |
| UVP (Undervoltage protection)
| |
| Dual OVP (Overvoltage protection)
| |
| SCP (Short-circuit protection)
| |
| OPP (Overload protection)
| |
| OCP (Overcurrent protection)
| |
| OTP (Over Temperature Protection)
| |
| MTBF (mean time between failure): >100.000h
|
