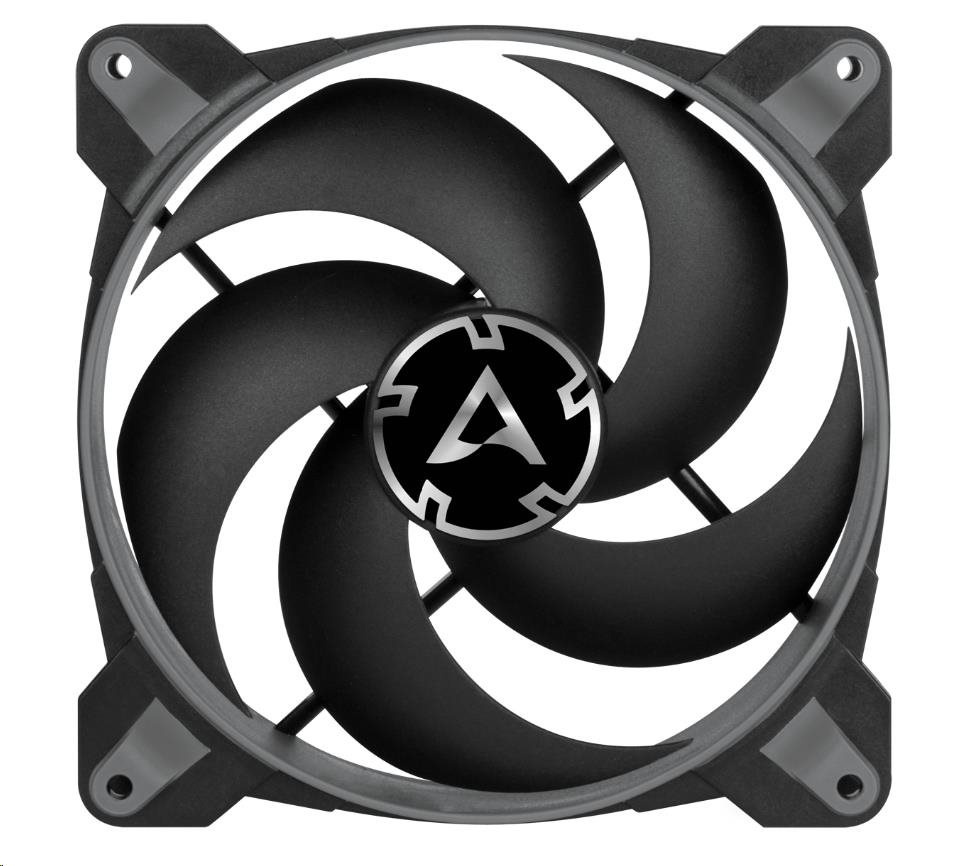

ARCTIC ventilátor BioniX P140 PWM PST 140x140x28mm, šedá

Kód: 523196
Na dotaz
Termín a způsob doručení
Typ chladiče:Aktivní; Využití chladiče:Do PC skříně; Velikost ventilátoru:140x140; Barva podsvícení:bez podsvícení; Napájecí konektor:4pin.Více
Vyberte si zvýhodněné balení
Množstevní slevy
349
288.43  bez DPH
Běžná cena: NaN
ks
envelope
Dotaz
bell
Hlídat
Parametry
Výrobce:
Kód:
523196
EAN:
4895213702355
Záruka:
24 Měsíc(ů) Měsíců
Využití chladiče:
Do PC skříně
Typ chladiče:
Aktivní
Barva podsvícení:
bez podsvícení
Napájecí konektor:
4pin
Velikost ventilátoru:
140x140
Popis ARCTIC ventilátor BioniX P140 PWM PST 140x140x28mm, šedá

BioniX P140

  • OPTIMISED FOR STATIC PRESSURE - During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure.
    The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.
  • MORE EFFICIENT TECHNOLOGY - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
  • MAXIMUM QUIETNESS, MINIMUM VIBRATION - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
    Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
  • EXTENDED LIFE SPAN - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
  • 200 TO 1950 RPM REGULATED VIA PWM PST - With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
  • HIGH QUALITY BEARING - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

TECHNICAL SPECIFICATIONS

Performance
Fan Speed 200 - 1950 rpm
Airflow 77.6 CFM / 131.92 m3/h
Static Pressure 2.85 mm/H2O
Noise Level 0.45 Sone
Fan
Fan Frame BioniX
Controll Type PST
Connector 4-Pin-Connector + 4-Pin-Socket
Fan Bearing Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage 12 V DC
Starting Voltage 0 V
Current / Voltage 0.15 A / 12 V
Cable Leght 400 mm
Size & Weight
Lenght 140 mm
Width 140 mm
Height 28 mm
Weight 181 g

.
