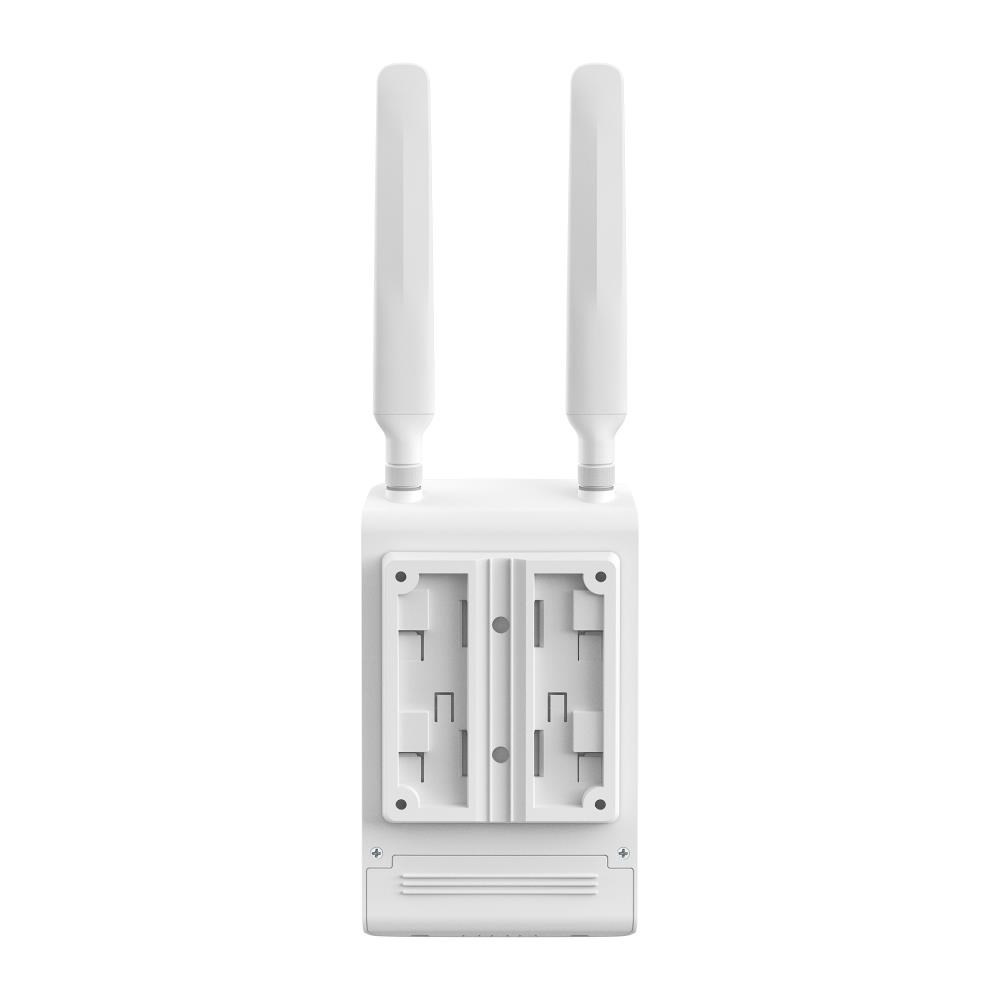

TP-Link ER703WP-4G-Outdoor OMADA VPN 4G+Cat6 venkovní router (AX3000,3xGbEWAN/LAN,1xPoE+,2xPoE-out,1xnanoSIM,IP55)
Kód: 324322Skladem1ks
Termín a způsob doručení
Funkce:Router, VPN; Přenosová rychlost Wi-Fi (Mb/s):2100 - 2700; Podporované standardy:802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.11ax; Počet portů LAN:3; Gigabit ethernet; Typ antény:Integrovaná; Slot na SIM kartu; Další vlastnosti:Podpora IPv6, PoE (Power over ethernet), Podpora 4G/LTE, Podpora Wi-Fi Mesh, Management, FTP server, VLAN.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
324322
EAN:
8885020626858
Záruka:
60 Měsíc(ů)
Stav:
USB port:
Ne
Gigabit ethernet:
Ano
Další vlastnosti:
VLAN, Podpora IPv6, FTP server, Management, Podpora 4G/LTE, PoE (Power over ethernet), Podpora Wi-Fi Mesh
Funkce:
Router, VPN
Podporované standardy:
802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.11ax
Slot na SIM kartu:
Ano
Přenosová rychlost Wi-Fi (Mb/s):
2100 - 2700
Typ antény:
Integrovaná
Počet portů LAN:
3,000000000
Popis TP-Link ER703WP-4G-Outdoor OMADA VPN 4G+Cat6 venkovní router (AX3000,3xGbEWAN/LAN,1xPoE+,2xPoE-out,1xnanoSIM,IP55)
TP-Link OMADA ER703WP-4G-Outdoor
Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
- 4G+ Cat6 s rychlostí až 300 Mb/s
- AX3000 Wi-Fi 6 s 2402 Mb/s na 5 GHz a 574 Mb/s na 2.4 GHz
- 3 × Gigabitové WAN/LAN porty (2 × PoE Out, 1 × PoE In)
- 1 × Slot pro Nano SIM kartu
- Napájení přes 802.3at/bt PoE nebo 12V/2A DC
- Automatická záloha WAN mezi 4G a Ethernetem s vyvažováním zátěže
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
- Centralizovaná správa
- Odolnost vůči povětrnostním vlivům (IP55)
Learn more about Omada Cloud SDN
https://www.tp-link.com/cz/business-networking/omada-router-wifi-router/er703wp-4g-outdoor/>
Technické specifikace
| 4G | |
| Network Type | LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9 00/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps; • Uplink: 50 Mbps |
| SECURITY | |
| DPI | Application control via DPI / Updated app library |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering • URL Filtering • Web Security |
| ARP Inspection | • Sending GARP Packets • ARP Scanning • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 3 Gigabit WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 802.3at/bt PoE; 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | 4G Signal, WLAN, WAN/LAN, SYS |
| Dimensions ( W x D x H ) | 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas • LTE: Two 4.0dBi omnidirectional detachable antennas |
| Mounting | Pole/Wall-Mounting |
| Max Power Consumption | POE:62.9W max @ 220V/50Hz 25? DC: 16.6W max @ 220V/50Hz 25? |
| PERFORMANCE | |
| DPI Throughput | • TCP: 1131 Mbps • UDP: 974 Mbps |
| GRE | • Unencrypted: 450.3Mbps • Encrypted: 277.6Mbps |
| WireGuard VPN | 462.8Mbps |
| Concurrent Session | 120 |
| New Sessions /Second | 3,8 |
| NAT (Static IP) | 945.9Mbps / 950.2Mbps |
| NAT(DHCP) | 947.3Mbps / 949.4Mbps |
| NAT(PPPoE) | 916.9Mbps / 946.3Mbps |
| NAT (L2TP) | 878.9Mbps / 778.9Mbps |
| NAT (PPTP) | 852.2Mbps / 775.9Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 568.3Mbps • ESP-SHA256-AES256: 559.8Mbps • ESP-SHA384-AES256: 565.6Mbps • ESP-SHA512-AES256: 550.0 Mbps |
| OpenVPN | 85.1Mbps |
| L2TP VPN Throughput | • Unencrypted: 858.7Mbps • Encrypted: 467.0Mbps |
| PPTP VPN Throughput | • Unencrypted: 876.2Mbps • Encrypted: 182.6Mbps |
| SSL VPN Throughput | 86.6Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,489 pps |
| 1,518 Byte Packet forwarding rate | 81275 pps / 81275 pps |
| WIRELESS FEATURES | |
| Advanced Functions | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing • RIP • OSPF |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10) • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5) • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | • 20 Tunnels |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever • LDAP |
| MANAGEMENT | |
| Omada App | Yes. |
| Centralized Management | • Omada Cloud Essentials • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER703WP-4G-Outdoor • Mounting Kits • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 90% non-condensing |
, ,
