TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)

Name: TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)
Brand: TP-link
SKU: 324597
Price: 2979 CZK
Availability: InStock

Kód: 324597

Skladem1ks

Termín a způsob doručení

TP-link

Typ aktivního prvku:AP (Access Point), MU-MIMO; Frekvenční pásmo (GHz):2,4, 5, 2,4 + 5 (Dual Band); Podporované standardy:802.11ax, 802.11b/g, 802.11b/g/n, 802.11b, 802.11a, 802.11a/n, 802.11g, 802.11n, 802.11ac; Zabezpečení:WEP 64bit, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3; Typ antény:Integrovaná; Použití:Venkovní; Typy PoE:PoE - In.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

324597

EAN:

1210002605731

Záruka:

60 Měsíc(ů)

Stav:

Novinka

Typ aktivního prvku:

AP (Access Point), MU-MIMO

Frekvenční pásmo (GHz):

2,4 + 5 (Dual Band), 5, 2,4

Připojení externí antény:

Podporované standardy:

802.11ax, 802.11n, 802.11b/g, 802.11a, 802.11ac, 802.11b/g/n, 802.11g, 802.11b, 802.11a/n

USB port:

Další vlastnosti:

PoE (Power over ethernet), QoS (Quality of Service), Podpora Wi-Fi Mesh, VLAN, Management

Slot na SIM kartu:

Počet portů LAN:

Použití:

Venkovní

Zabezpečení:

WEP 64bit, WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, WPA3

Typ antény:

Integrovaná

Typy PoE:

PoE - In

Počet portů LAN:

Popis TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)

Diskuze k produktu TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)

Tato položka nebyla doposud diskutována. Pokud chcete být první, klikněte na tlačítko Přidat příspěvěk

Naposledy navštívené produkty

TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)

Zavolejte nám

Nebo nám napište na

HARDWARE FEATURES

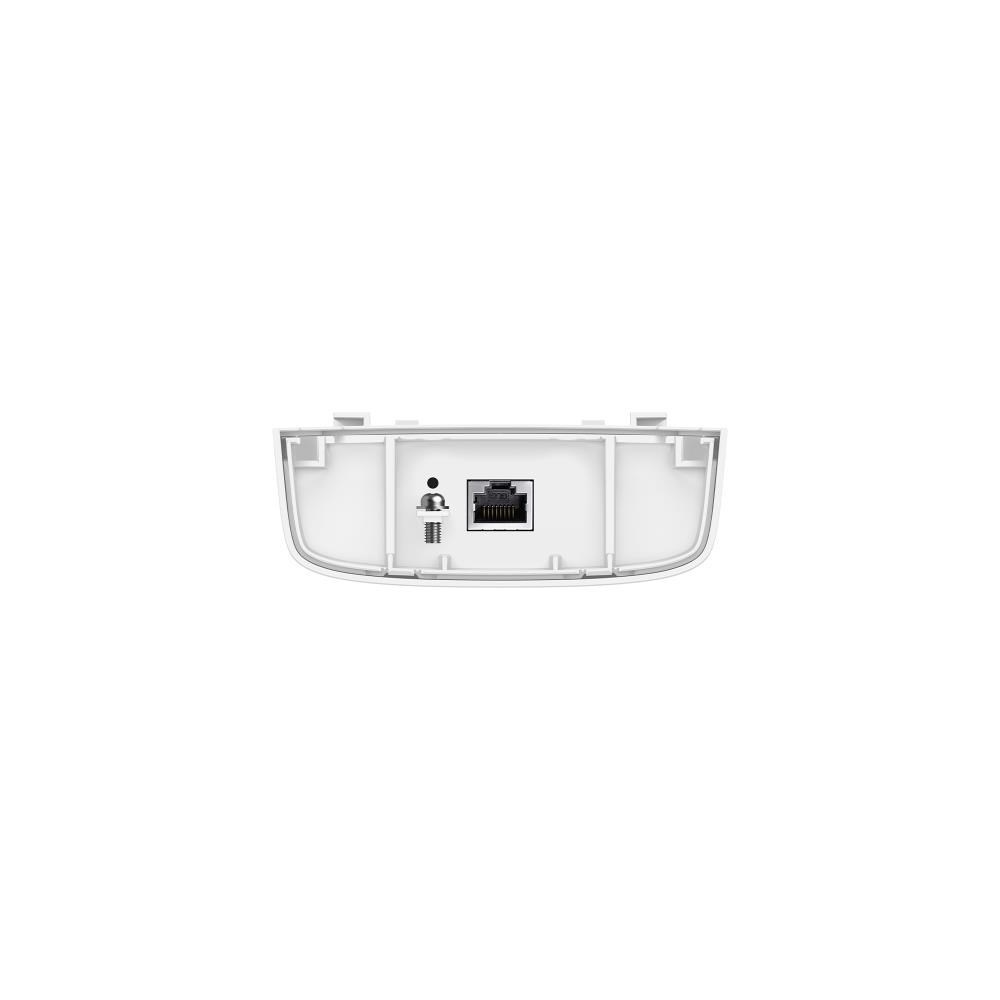

Interface	• 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in • 1× Grounding Termina
Button	1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
Power Supply	• 802.3at PoE • 48V Passive PoE (PoE Adapter Included - For Dry Indoor Use Only)
Max. Power Consumption	• 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc. • Idle mode: 4.8W(PoE)
Dimensions ( W x D x H )	• Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.) • Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
Antenna	Wi-Fi • 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas • 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas *Note: The gains above are the single-antenna peak gains. IoT • Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas
Bluetooth	Yes
Weatherproof Enclosure	IP66 for Wall Mount IP65 for Pole Mount

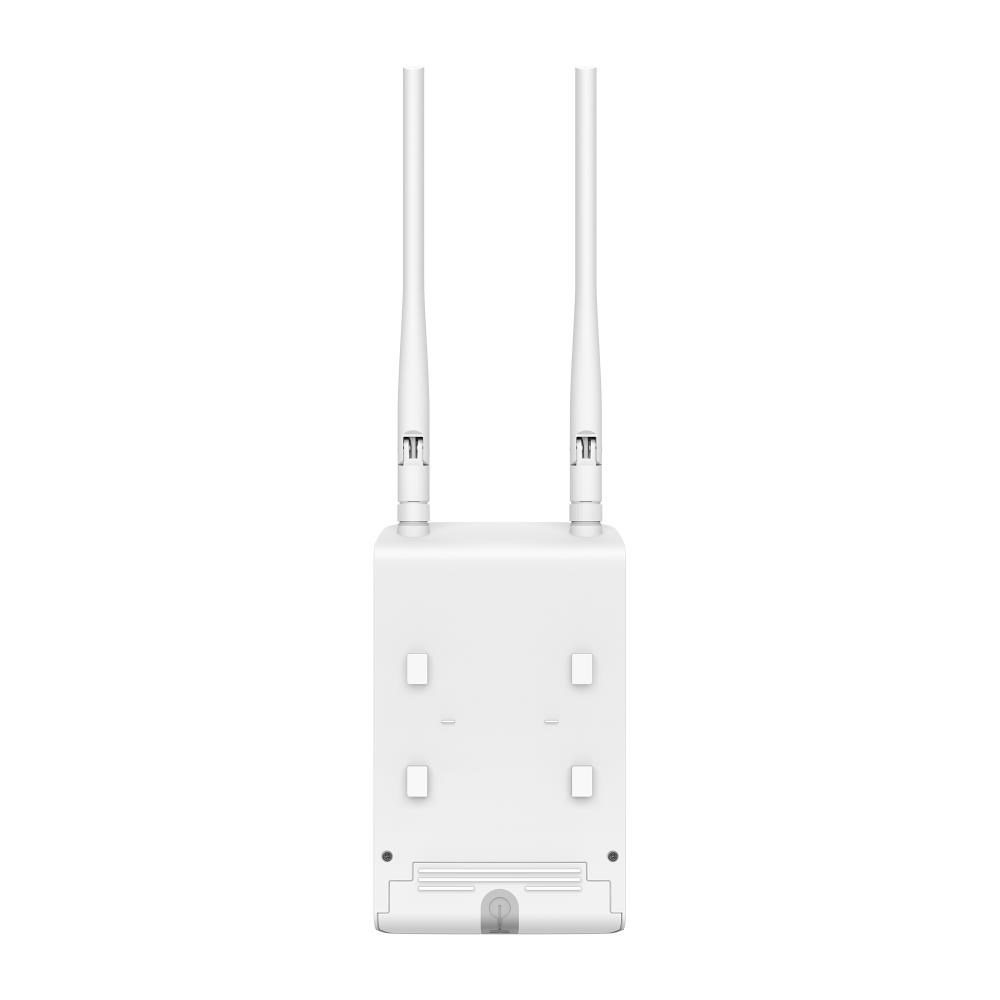

Mounting	• Pole Mount (Kits included) • Wall Mount (Kits included)
WIRELESS FEATURES
Coverage	• 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m)
Wireless Standards	5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax
Frequency	• 5 GHz • 2.4 GHz
Signal Rate	• 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps *Note: Country-Specific Restriction Apply
Wireless Functions	• Maximum number of BSSIDs: 16 (8 on each band) • Maximum number of associated STAs: 250+ • Guest Network • ACS (Automatic Channel Selection) • Airtime Fairness • Band Steering • 802.11 Rate Control • Rogue AP Detection • URL Filtering • WLAN Optimization • Lock to AP • SSID/Client Rate Limit • Load Balance • Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§ • Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit) • QoS (Quality of Service)
Wireless Security	• ACL • MAC Filter • 802.1X Authentication • MAC-Based Authentication • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None • Radius Accounting • PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC) • Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client • EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
Transmission Power	Maximum transmit power: CE (ERIP) • 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power) • 2.4 GHz: 25 dBm • 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3 Minimum transmit power CE (ERIP) • 2.4 GHz: 7 dBm • 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 FCC (Conducted Power) • 2.4 GHz: 4 dBm • 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3 Adjustable power increment: 1 dBm *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations
Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) • Omada App
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Content	• EAP603-Outdoor • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit • Waterproof Kit
Environment	• Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
