MSI MB Sc LGA1700 PRO B760M-P, Intel B760, 4xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX
Kód: 2648464Skladem>5ks
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel B760; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:1; PCI Express x1:2; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; DisplayPort Type-C:0; USB 2:8; USB 3:3.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
2648464
EAN:
4711377086578
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1700
Formát základní desky:
micro ATX
Chipset:
Intel B760
PCI Express x16:
1
Podpora RAID:
1, 5, 10
COM port:
Ano
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
USB 2:
8
USB 3:
3
M.2 slot:
2
SATA 3:
4
VGA:
1
HDMI:
1
Led Header:
Ano
PCI Express x1:
2
USB C:
1
LAN:
1Gbit/s
Popis MSI MB Sc LGA1700 PRO B760M-P, Intel B760, 4xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX

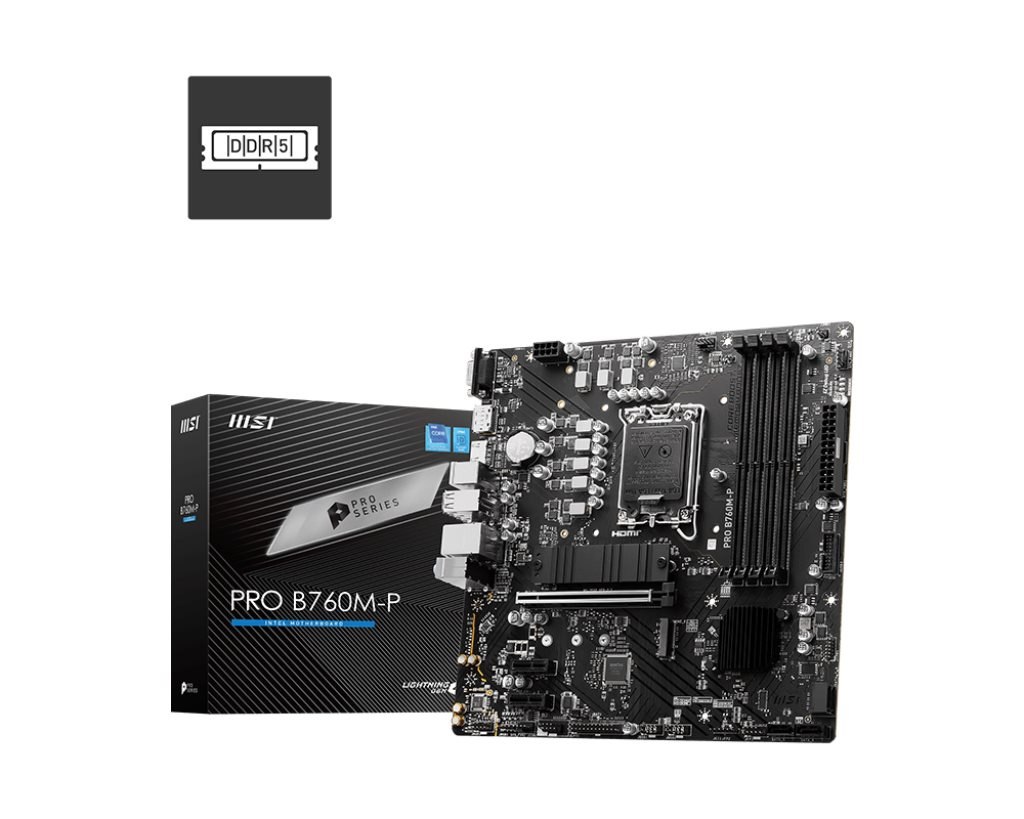

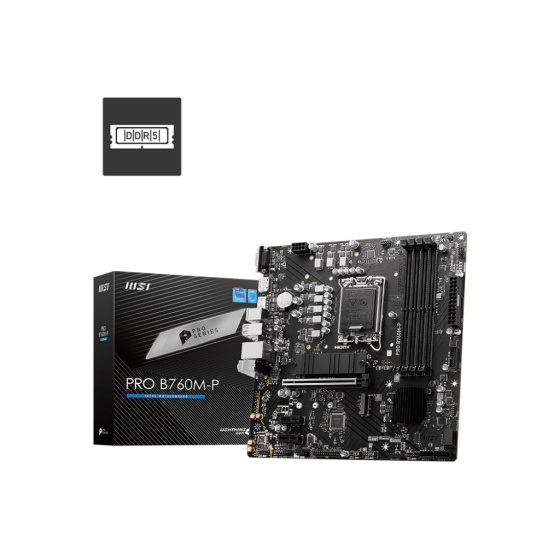

MSI PRO B760M-P
PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.
CHIPSET
INTEL B760
CPU SUPPORT
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)
LAN
Realtek® RTL8111H Gigabit LAN
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
1x VGA
1x DisplayPort
1x HDMI™
2x Keyboard / Mouse
4x USB 2.0
1x LAN port
3x Audio Connectors
1x USB 3.2 Gen 1 5Gbps (Type-A)
1x USB 3.2 Gen 2 10Gbps (Type-C)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W × L)
mATX 243.84mmx243.84mm
Co je v krabici
SATA Cables
2x M.2 Screw
I/O Shield
, ,
