MikroTik L22UGS-5HaxD2HaxD-15S, mANTBox ax 15s (RouterOS L4)

Specifications Product code L22UGS-5HaxD2HaxD-15S CPU Dual-Core IPQ-5010 800 MHz CPU architecture ARM Size of RAM 256 MB Storage 128 MB, NAND Number of 1G Ethernet ports 1 Number of 1G SFP ports 1 (2.5G supported) USB port 1 USB 2.0 port type A Wireless interface model IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz) Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain Antenna gain 2.4 GHz - 12 dBi, 5 GHz - 15 dBi Dimensions 349 x 140 x 82 mm Operating system RouterOS v7, License level 4 Operating temperature -40°C to +70°C Number of DC inputs 2 (PoE-In, DC jack) PoE-In input Voltage 18-28 V DC jack input Voltage 12-28 V Max USB current 1.5 A Power adapter nominal voltage 24 V Power adapter nominal current 1.2 A PoE-In Passive PoE Max power consumption (without attachments) 11 W Max power consumption 21 W

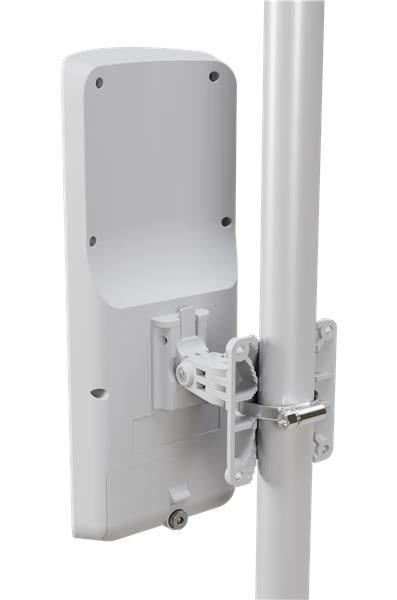

mANTBox ax 15s sector antenna

.
, ,
