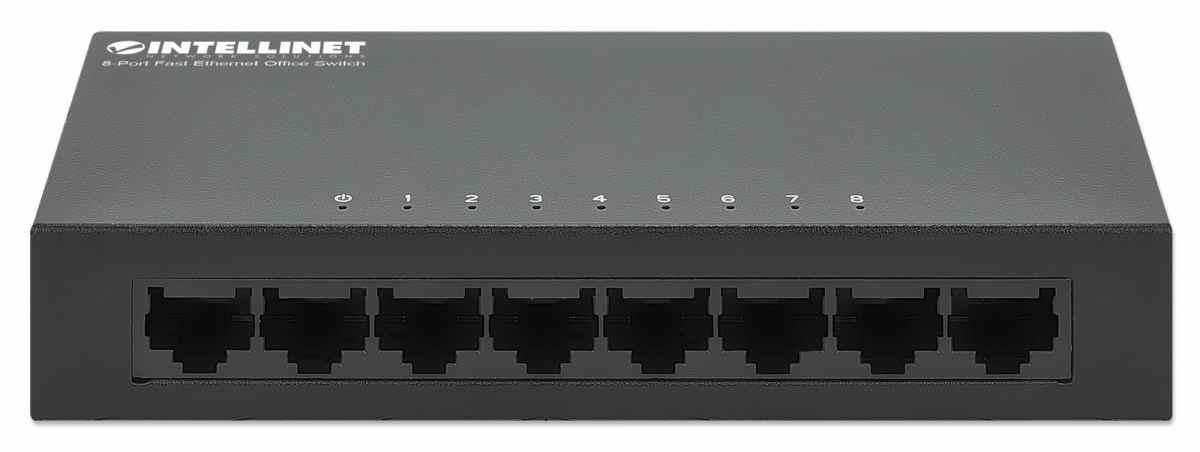

Intellinet Switch 8 Port 10/100, kov

8-Port Fast Ethernet Office Switch Desktop Size, Metal, IEEE 802.3az (Energy Efficient Ethernet) Color: Black •Eight 10/100 auto sensing ports - automatically detect optimal network speeds •Supports any combination of 10 Mbps or 100 Mbps network devices •Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length •All RJ45 ports with Auto-MDIX (auto uplink) support •Supports NWay auto-negotiation •Store and forward switching architecture •Full/half duplex operation •IEEE 802.3x flow control for full duplex •Zero packet loss backpressure flow control for half duplex •Packet filtering/forwarding rates: 148.800 pps (100 Mbps), 14.880 pps (10 Mbps) •Supports 1024 MAC address entries •96 kBytes buffer memory •LEDs for power, link/activity, full/half duplex •Compact metal case Standards •IEEE 802.3 (10Base-T Ethernet) •IEEE 802.3u (100Base-TX Fast Ethernet) •IEEE 802.3x (flow control, for full duplex mode) General •Media support: - 10Base-T Cat3, 4, 5 UTP/STP RJ-45 - 100Base-TX Cat5 UTP/STP RJ-45 •Packet filter/forwarding rate: - 148,800 pps (100 Mbps) - 14,880 pps (10 Mbps) •Buffer memory: 96 kBytes •MAC address table: 1024 entries •Switch architecture: store and forward •Certifications: FCC Class B, CE LEDs •Power •Link/TX •Full/half duplex Power •External power adapter: 9 V, 500 mA Environmental •Metal housing •Dimensions: 155 (W) x 85 (L) x 25 (H) mm (6.1 (W) x 3.3 (L) x 1.0 (H) in.) •Weight: 420 g (0.9 lbs.) •Operating temperature: 0 – 40°C (32 – 104°F) •Operating humidity: 10 – 90% RH, non-condensing •Storage temperature: -20 – 70°C (-4 – 158°F) Package contents •8-Port Fast Ethernet Office Switch •External power adapter.
