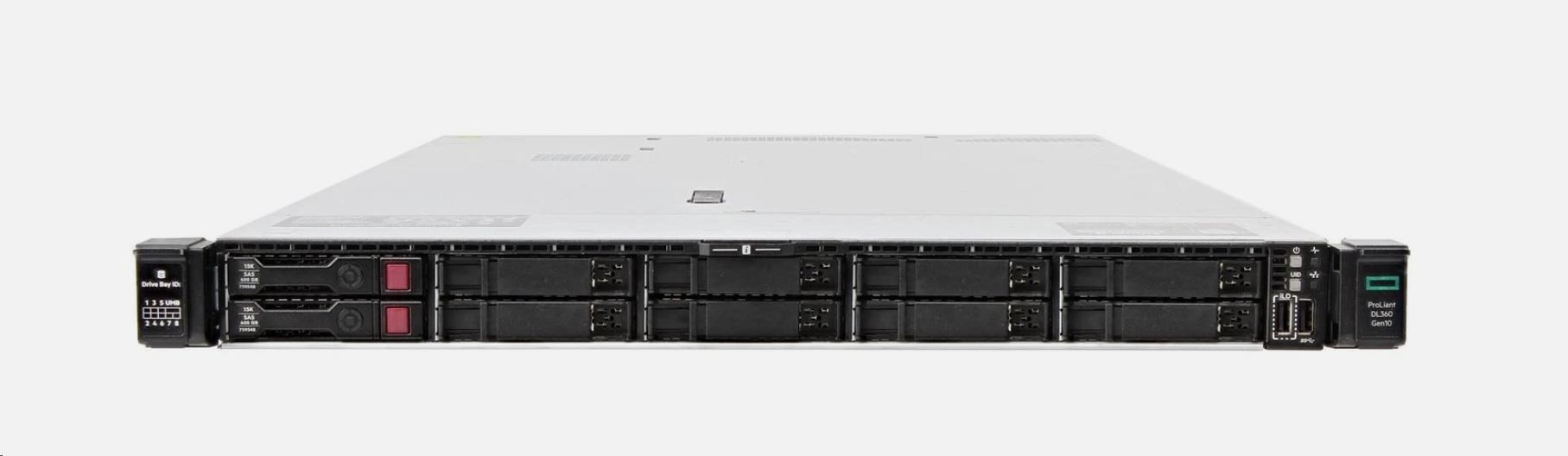

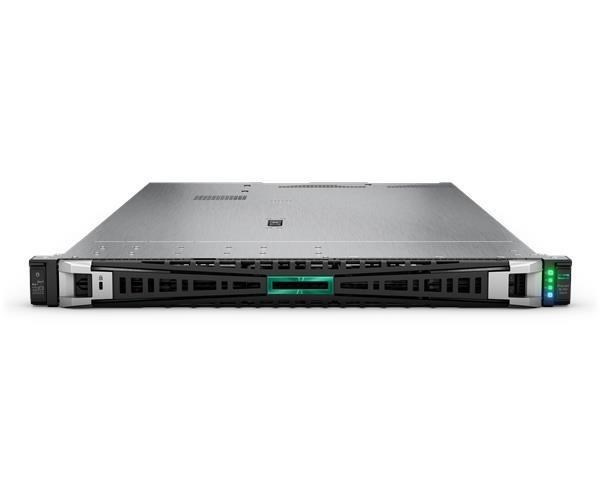

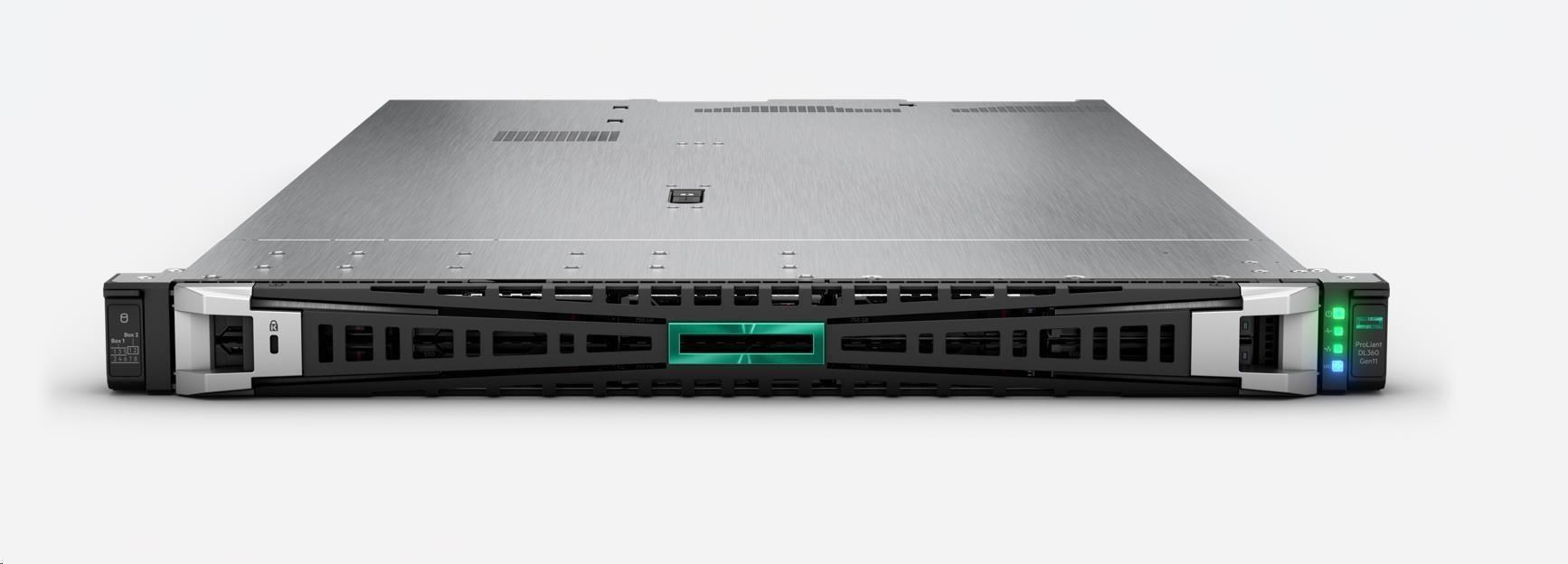

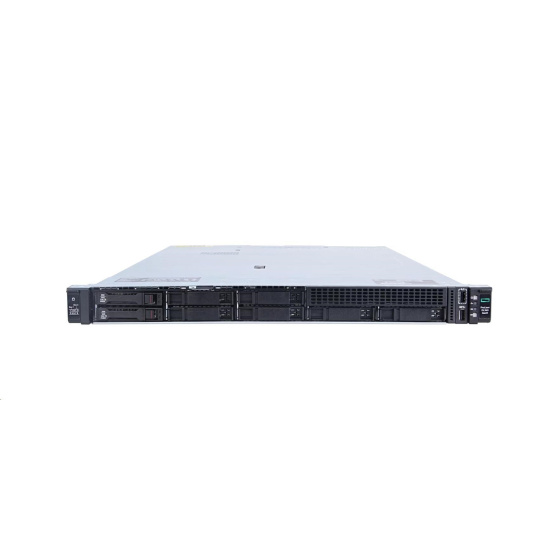

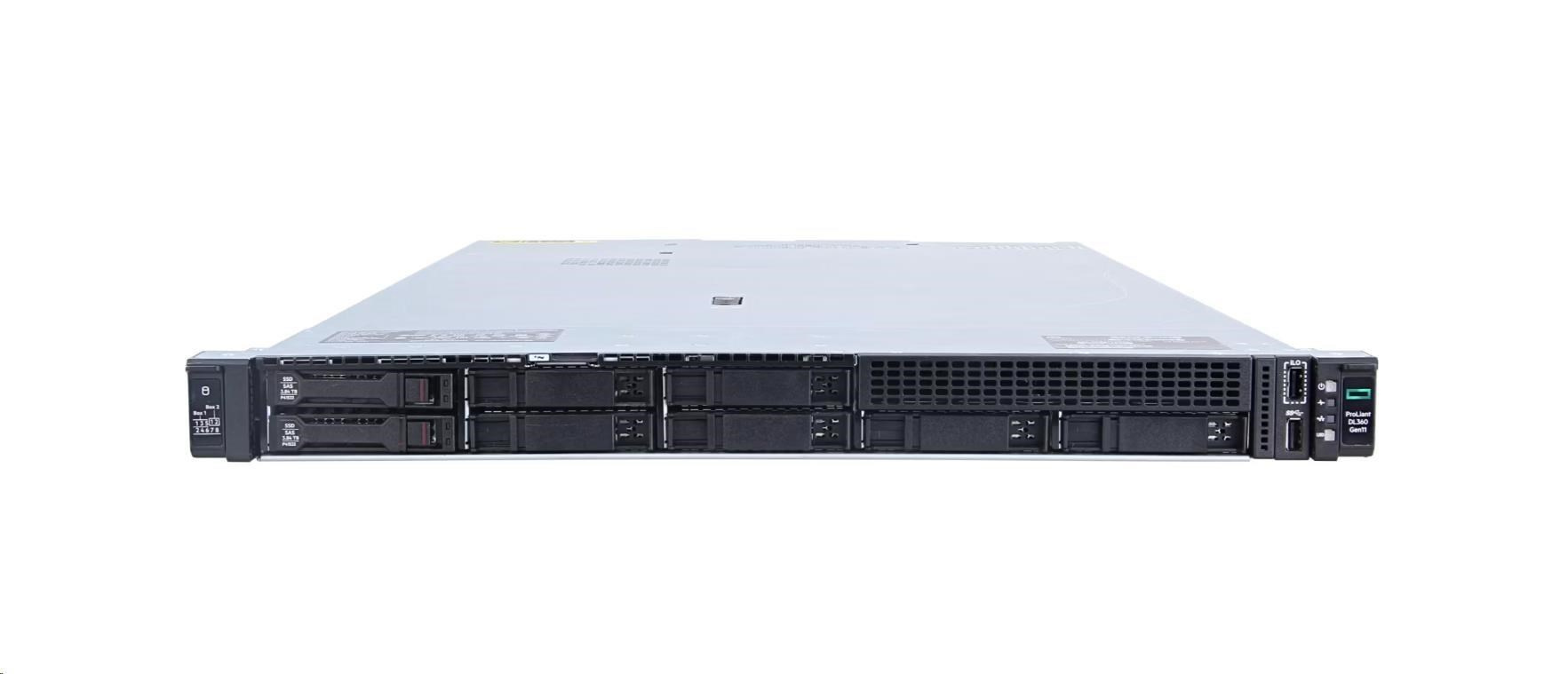

HPE PL DL360g11 5415+ (2.9G/8C) 1x32G (P43328) VROC (sata) 8SFF 1x800W 2x10Gb-T NBD333 1U P51932-421 RENEW

HPE PL DL360g11 5415+ (2.9G/8C/23M) 1x32G VROC (sata) 8SFF 1x800W 2x10Gb-T NBD333 1U P51932-421 RENEW

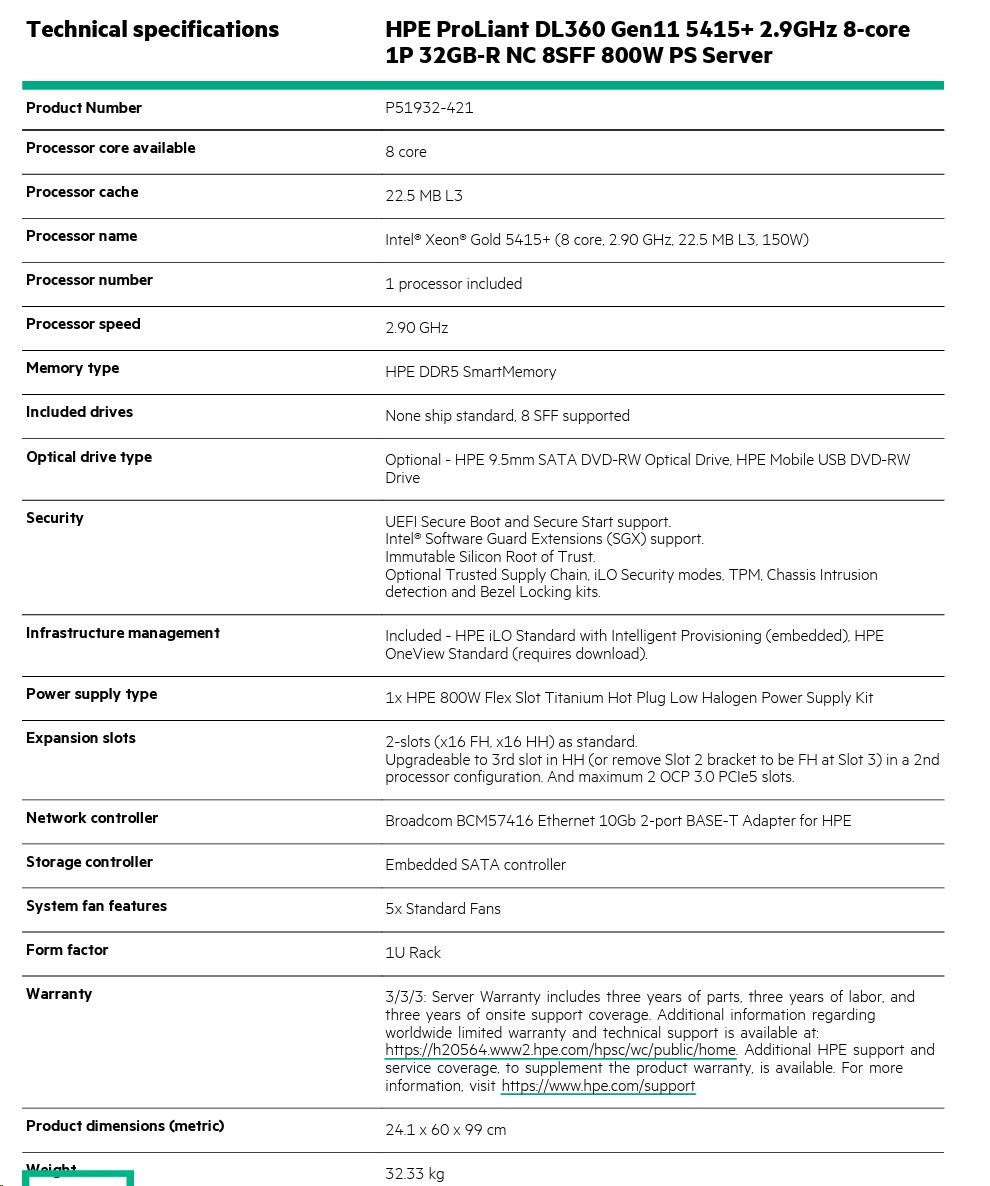

SKU Number P51932-B21

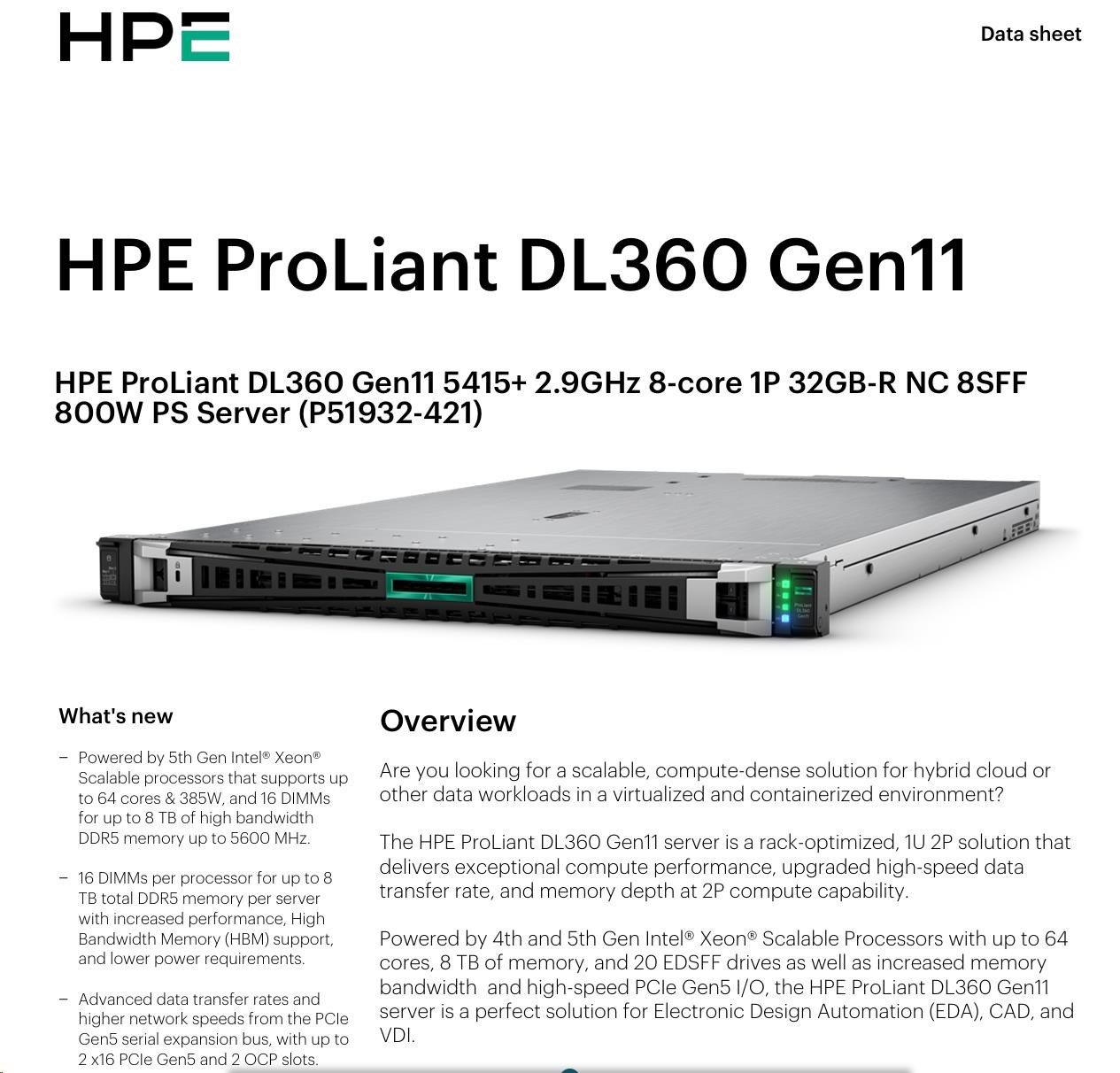

Model Name HPE ProLiant DL360 Gen11 5415+ 2.9GHz 8-core 1P 32GB-R NC 8SFF 800W PS Server

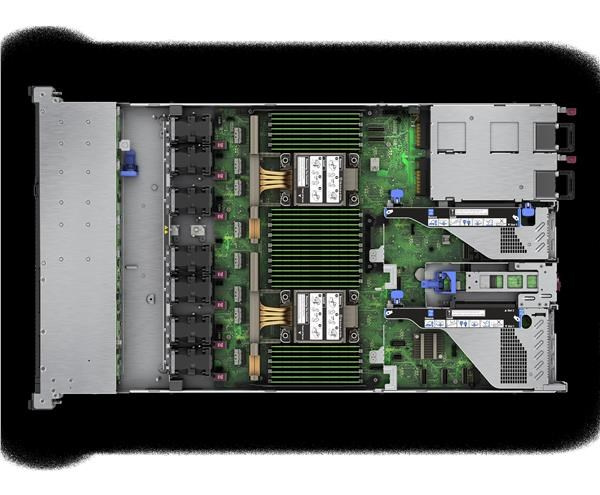

Chassis HPE ProLiant DL360 Gen11 8SFF NC CTO Server (P52499-B21)
CPU 5415+ (8 core, 2.9GHz, 150W)
Number of Processors One with standard heatsink
Memory 32 GB RDIMM 2Rx8 4800 MT/s (1x 32 GB) (P43328-B21) Notes: Runs at 4000 MT/s due to processor limitation.
Network Controller Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE (P26253-B21) Notes: No embedded networking
Storage Controller Embedded Intel® VROC SATA, 14 SATA ports (10-ports accessible); Choice of modular Smart Array and PCIe plug-in controller
Hard Drive None Included
Internal Storage 8 SFF NC CTO Server (upgradeable to 8+2 SFF front)
PCIe Slots 2-slots (x16 FH, x16 HH). Upgradeable to 3rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in 2nd CPU configuration.
Power Supply 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Fans 5 - Standard
Management HPE iLO 6
Security Trusted Platform Module (TPM) Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature and can be disabled in the BIOS setting.
Rail Kit HPE Easy Install Rail 5 Kit; w/o CMA. Notes: Server does not support shelf mounted rail kits ("L" brackets).
Energy Star Energy Star 3.0
Form Factor 1U Rack
Warranty 3-year parts, 3-year labor, 3-year onsite support with next business day response.

Category
Keyword
	Add to Cart	Click to Buy	Part Number	Part Description	Most Used	CSR	Tech Courier	RoHS
Cover
Cover
			775423-001	DL560/DL360 Gen9 blank cover kit - Contains power supply blank cover, Flexible LOM blank cover, fan slot blank, and Heat Sink blank		A	-N/A-	COMPLY_2406
DIMM Memory Module Parts
Memory
			812914-001	DDR4 memory slot blank - To fill empty memory slots to ensure proper air flow in the chassis		N	-N/A-	COMPLY_5012
Memory (DIMM)
			P48501-001	SPS-DIMM,32GB PC5-4800B-R,2Gx8		B	-N/A-	COMPLY_2406
Drive Module Parts
Drive Assembly
			P36059-001	SPS-PCA 8SFF U.3 x1 S/S/NVMe E UBM3 BP		N	-N/A-	COMPLY_2406
Drives
Drive
			654961-B21	HPE Small Form Factor (SFF) Hard Disk Drive (HDD) common blank Gen8		-N/A-	-N/A-	COMPLY_2406
			670033-001	Hard drive blank (cover) - To fill empty Small Form Factor (SFF) drive bays - for Gen8 servers		B	-N/A-	COMPLY_5012
Fan Module Parts
Fan
			P53226-001	SPS-FAN MOD,STD		A	-N/A-	COMPLY_5012
Front Panel Parts
Panel
			P56474-001	SPS-Access Panel,Large base,1UMPH		A	-N/A-	COMPLY_5012
Hardware Parts
Tower
			P53219-001	HPE DL360 Gen11 8SFF NC CTO Server6		A	-N/A-	COMPLY_5012
Memory
Memory
			P56476-001	SPS-CA, 8SFF U.3 x1 to MLB		A	-N/A-	COMPLY_5012
PC Boards and Power Cords
PC Board
			P53214-001	SPS-SUBPAN,SYS BRD, 2U		B	-N/A-	COMPLY_2406
			P56497-001	SPS-Riser 1U 2 x16 BTF		A	-N/A-	COMPLY_2406
			P60634-001	SPS-SYS BRD W/SUBPAN, 1U		-N/A-	-N/A-	-N/A-
PDU Assembly Parts
PDU
			142258-001	AC Power Distribution Unit (PDU) power cord (Black) - 250 V ac, 16 AWG, 2.0 m (6.6 ft) long - Includes IEC-320 C14 (M) connector to IEC 320 C13 (F) connector		A	-N/A-	COMPLY_2406
			142258-003	AC Power Distribution Unit (PDU) power cord (Black) - 250 V, 16 AWG, 3 m (9.8 ft) long - Has C14 (M) connector to C13 (F) connector		A	-N/A-	COMPLY_2406
			416151-B21	Power Distribution Unit (PDU) power cord		-N/A-	-N/A-	COMPLY_2406
Power Supplies and Parts
Power Supply
			866793-001	800 watt Flexible Slot Titanium hot-plug low Halogen power supply - 200 - 240V AC power input - 96% efficiency- Mixing of power supplies in the same server is not supported, must be the same spare part number		A	-N/A-	COMPLY_5012
Rail Kit Parts
Rail Kit
			P58211-001	SPS-KIT, FR, RAIL 3		A	-N/A-	COMPLY_5012
Transceiver Parts
Interface (Module)
			P26987-001	SPS-PCA NIC Gen3 2P 10GbE BT Opn		B	-N/A-	COMPLY_2406
