HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140 JL826AR RENEW
Kód: 713959Na dotaz
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, Stohovatelnost, L2+L4, L3; Technologie:Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:8; Počet portů LAN:8; Přenosová rychlost LAN (Mb/s):96; Počet SFP portů:24; Počet SFP+ portů:4; Počet portů Combo:8; Počet portů Combo:8; Ventilátor.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
713959
EAN:
713959
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
24
Provedení:
Rack mounted 19"
Technologie:
Gigabit ethernet + 10 Gigabit optika
Management:
SNMP/RMON
Funkce:
L3, QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2+L4, Stohovatelnost
Počet SFP portů:
24
Počet portů Combo:
8
Počet portů LAN:
8
Ventilátor:
Ano
Přenosová rychlost LAN (Mb/s):
96
Počet portů LAN:
8,000000000
Maximální počet portů:
24,000000000
Počet portů Combo:
8,000000000
Počet SFP+ portů:
4,000000000
Počet USB 2.0:
1,000000000

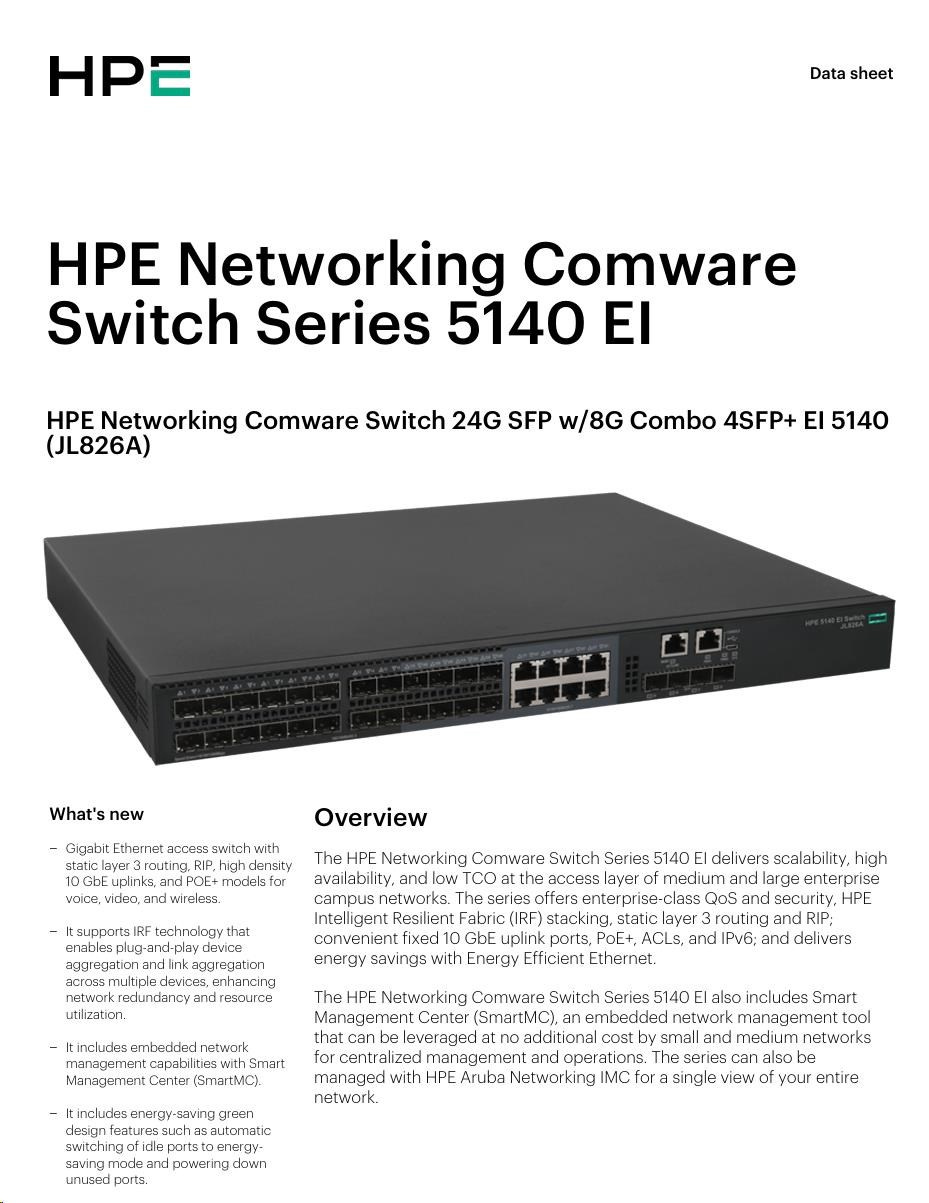

Popis HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140 JL826AR RENEW
HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140 JL826AR RENEW
.
, ,

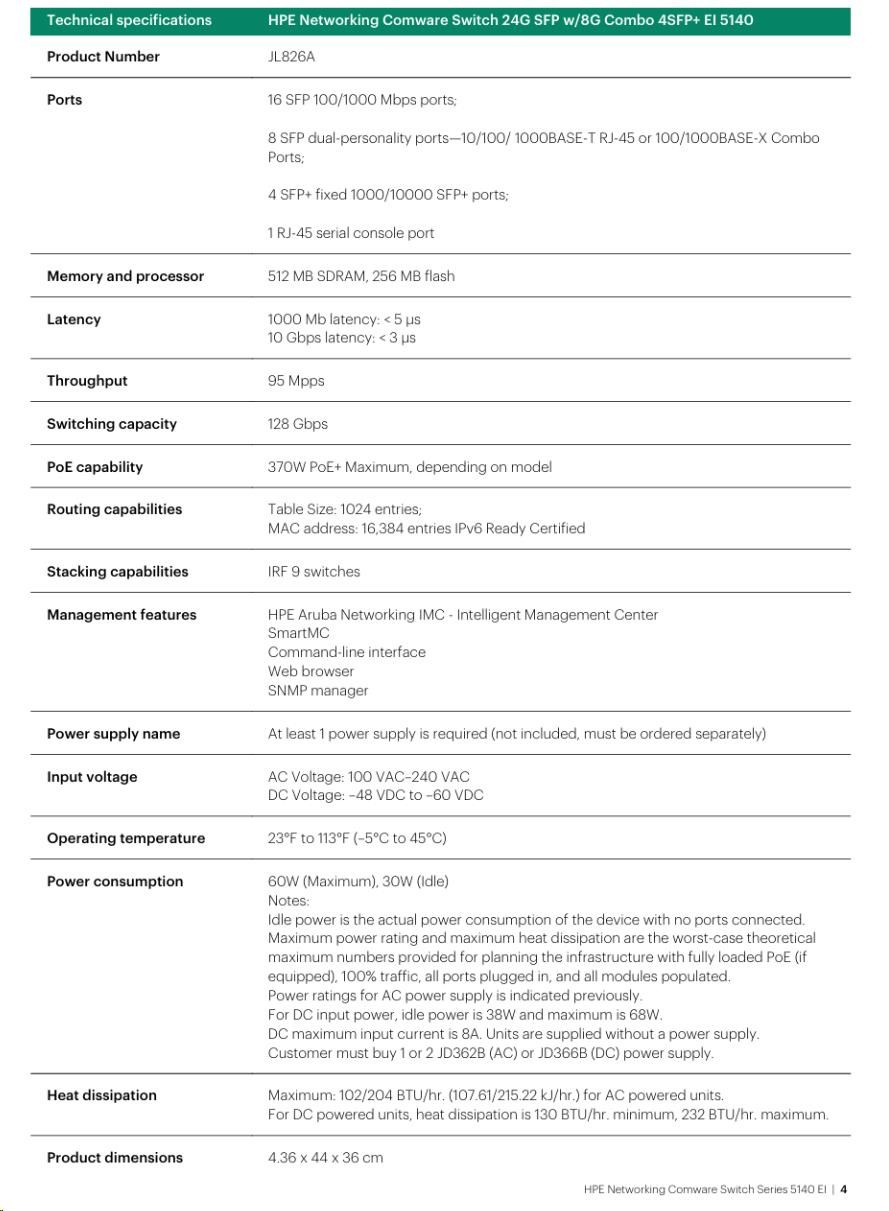

| HPE FlexNetwork 5140 24G SFP 4SFP+ EI Switch (JL826A) | ||
| I/O ports and slots | 16 SFP 100/1000 Mbps ports | |
| 8 SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports | ||
| 4 SFP+ fixed 1000/10000 SFP+ ports | ||
| Additional ports and slots | 1 RJ-45 serial console port | |
| Power supplies | 2 power supply slots 1 minimum power supply required (ordered separately) | |
| Physical characteristics | Dimensions | 17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height) |
| Weight | 13.23 lb (6kg) | |
| Memory and processor | 512 MB SDRAM, 256 MB flash; | |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) | |
| Performance | IPv6 Ready Certified | |
| 1000 Mb Latency | < 5 µs | |
| 10 Gbps Latency | < 3 µs | |
| Throughput | 95 Mpps | |
| Routing/Switching capacity | 128 Gbps | |
| Routing table size | 1024 entries | |
| MAC address table size | 16384 entries | |
| Environment | Operating temperature | 23°F to 113°F (-5°C to 45°C) |
| Operating relative humidity | 10% to 90%, noncondensing | |
| Non-operating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | |
| Non-operating/Storage relative humidity | 5% to 95%, noncondensing | |
| Acoustic | Low-speed fan: 41.4 dB, High-speed fan: 47.7 dB; ISO 7779 | |
| Electrical characteristics | Frequency | 50/60 Hz |
| Maximum heat dissipation | 102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130 BTU/hr min, 232 BTU/hr max. | |
| Voltage | 100 - 240 VAC -48 to -60 VDC | |
| Current | 5 A | |
| Maximum power rating | 60 W | |
| Idle power | 30 W | |
| Notes: | - Idle power is the actual power consumption of the device with no ports connected. - Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. - Power Ratings for AC Power Supply indicated above. - For DC input power, Idle Power is 38W and Max is 68W. - DC Max input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply. | |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance | |
| Emissions | FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 | |
| Immunity | Generic | EN 55024 |
| ESD | EN300 386 | |
| Management | IMC - Intelligent Management Center; SmartMC;command-line interface; Web browser; SNMP Manager | |
Ports
(16) SFP 100/1000 Mbps ports (8) SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports (4) SFP+ fixed 1000/10000 SFP+ ports
Throughput
up to 96 Mpps
Routing/switching capacity
128 Gbps
PoE capability
370W PoE+ Maximum, depending on model
Stacking capabilities
IRF 9 switches
Management features
IMC - Intelligent Management Center
SmartMC
Command-line interface
Web browser
SNMP manager
SmartMC
Command-line interface
Web browser
SNMP manager
Input voltage
100 - 240 VAC, rated -48 to -60 VDC, rated (depending on power supply chosen)
Power consumption
57 W (maximum)
Weight
13.23 lbs
UNSPSC code
43222612
, ,
