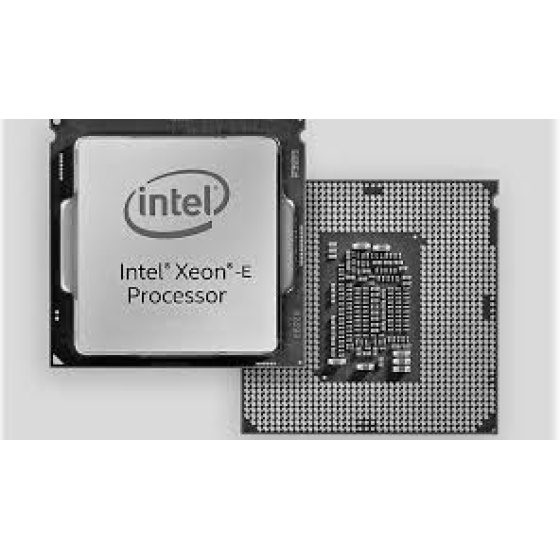

CPU INTEL XEON E-2134, LGA1151, 3.50 Ghz, 8M L3, 4/8, tray (bez chladiče)
Popis a parametry
Diskuse
CPU INTEL XEON E-2134, LGA1151, 3.50 Ghz, 8M L3, 4/8, tray (bez chladiče)
| Code Name | Coffee Lake |
| Essentials | |
| Vertical Segment | Server |
| Processor Number | E-2134 |
| Lithography | 14 nm |
| Performance | |
| # of Cores | 4 |
| # of Threads | 8 |
| Processor Base Frequency | 3.50 GHz |
| Max Turbo Frequency | 4.50 GHz |
| Cache | 8 MB SmartCache |
| Bus Speed | 8 GT/s DMI3 |
| TDP | 71 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported ‡ | Yes |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | 1x16,2x8,1x8+2x4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| Package Size | 37.5mm x 37.5mm |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® TSX-NI | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
.
ParametryPřidat do porovnání
Řada procesoru
Intel 4 Core Xeon
Socket (patice)
Socket 1151
Druh procesoru
Serverový
Počet jader
4
Velikost L3 cache
8 MB
