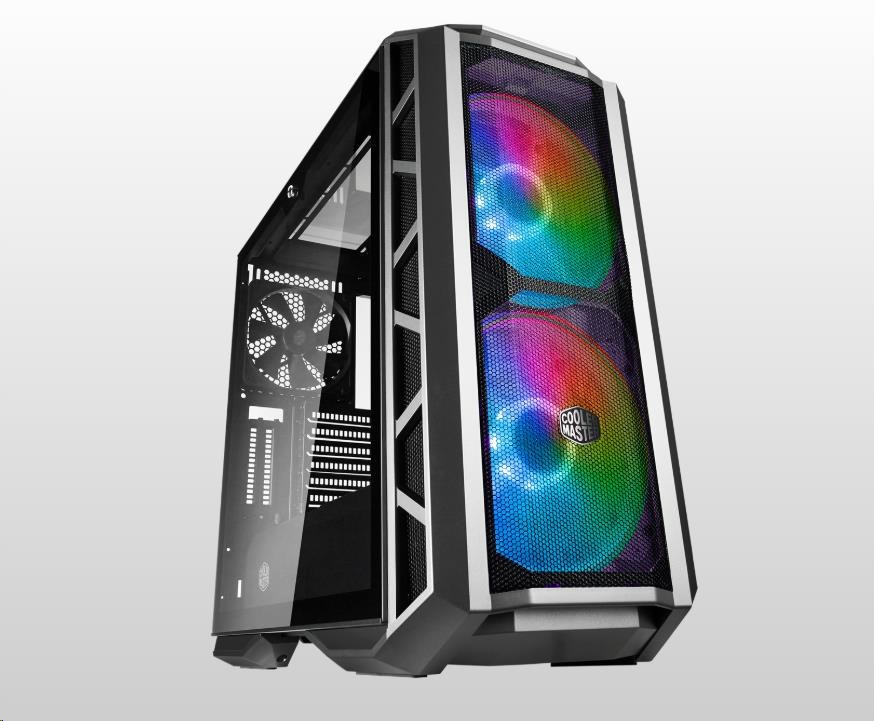

MASTERCASE H500P MESH ARGB
EQUAL PARTS REFINED, RUGGED, & RUTHLESS.
Every serious gaming system requires a substantial amount of airflow. Not just for freshly built rigs, but also for upgrading hardware in the future. The MasterCase H500P Mesh ARGB was engineered for exactly that. Now, with dual 200mm ARGB fans, premium addressable lighting comes pre-installed—one upgrade checked off.
Mesh spans the entire front to provide an unrestricted pathway for air, fed to the two massive fans behind the panel. Whether extreme water-cooling or air-cooling is the preferred method, the MasterCase H500P Mesh ARGB delivers versatility, performance, and customizability with ARGB lighting to boot.
DUAL 200MM ARGB FANS
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.

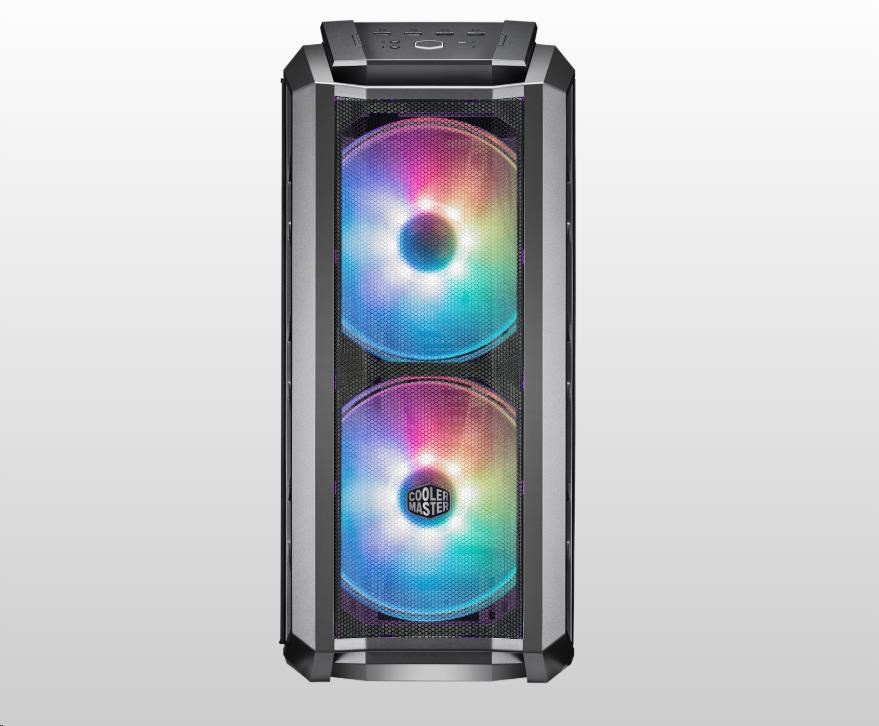

MESH FRONT PANEL
Two layers of mesh make up the entire front panel to maximize airflow. A finer layer filters out dust while the steel mesh reinforces its structure.
BUILD BY DESIGN

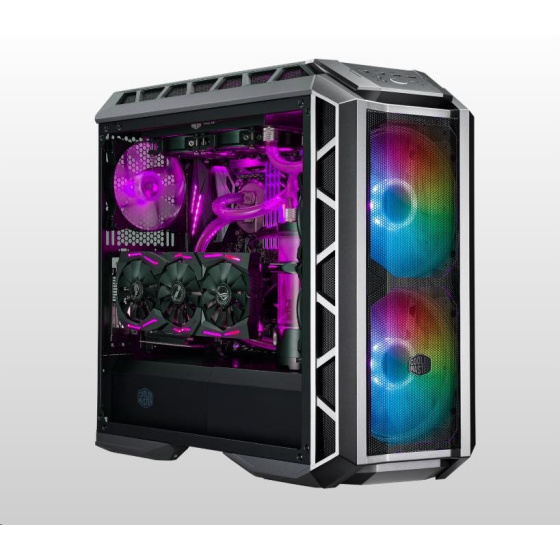

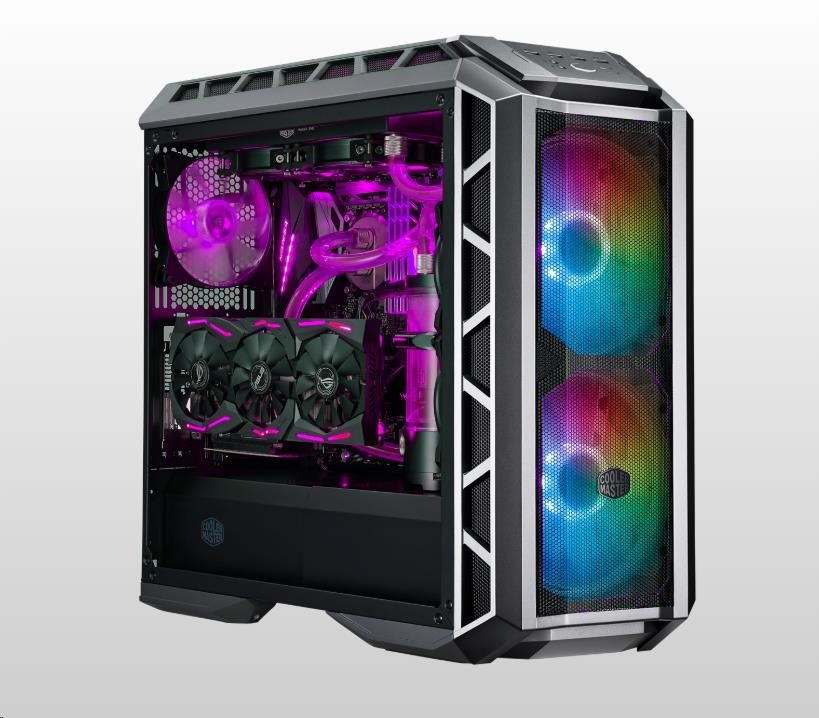

Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter.
ARGB LIGHTING SYSTEM
The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.
TEMPERED GLASS SIDE PANEL
Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
TECHNICAL SPECIFICATIONS
Model Number | MCM-H500P-MGNN-S11 |
Series | MasterCase Series |
Size | Mid Tower |
Color | Gun Metal Grey |
Materials | Steel, Plastic, Tempered Glass, Mesh |
Dimension (L x W x H) | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch |
Weight | 11.3kg |
Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features) |
Expanstin slots | 7+2, (Supports vertical graphics card installation) |
5.25" Drive Bays | 0 |
2.5"/3.5" Drive Bays (Combo) | 2 |
2.5" Drive Bays | 2 (Max. 2) |
I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter |
Pre-Installed Fans - Front | 2x 200mm ARGB Fan |
Pre-Installed Fans - Rear | 1x 140mm, 1200RPM |
Fan Support - Top | 3x 120/140mm, 2x 200mm |
Fan Support - Front | 3x 120/140mm, 2x 200mm |
Fan Support - Rear | 1x 120/140mm |
Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support - Rear | 120mm, 140mm |
Clearance - CPU Cooler | 190mm |
Clearance - PSU | 220mm |
Clearance - GFX | 412mm/16.2" |
Dust Filters | Top, Front, Bottom |
Power Supply Support | Bottom mount, ATX |
Warranty | 2 years |
EAN Code | 4719512095249 |
UPC Code | 884102042690 |
.
