Cooler Master case MasterBox 520 Mesh, ATX, bez zdroje, průhledná bočnice, černá

Kód: 1566192
Skladem>5ks
Termín a způsob doručení
Provedení skříně:Mini ITX; Počet pozic 3.5" (HDD):2; Počet pozic 2.5" (SSD):3; Vybavení PC skříně:Bez integrovaného zdroje, Přední Audio panel, Přední USB panel, Průhledná bočnice.Více
Vyberte si zvýhodněné balení
Množstevní slevy
2 659
2 197.52  bez DPH
Běžná cena: NaN
ks
envelope
Dotaz
bell
Hlídat
Parametry
Výrobce:
Kód:
1566192
EAN:
4719512126486
Záruka:
24 Měsíc(ů)
Provedení skříně:
Mini ITX
Počet pozic 3.5" (HDD):
2
Počet pozic 2.5" (SSD):
3
Vybavení PC skříně:
Průhledná bočnice, Bez integrovaného zdroje, Přední Audio panel, Přední USB panel
Popis Cooler Master case MasterBox 520 Mesh, ATX, bez zdroje, průhledná bočnice, černá

Masterbox 520 MESH

Power up and get ready to shine.

MasterBox 520 Mesh is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place upmost value on system performance and high-quality gaming experiences, or dazzling aesthetics and an outlook that stands out, MasterBox 520 Mesh has something in for you. Pre-installed with three CF120 ARGB fans, your system is brought to life with stunning lighting effects, completely customizable to match your theme or preference. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.

  • FineMesh Performance Front Panel – Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
  • Three CF120 ARGB Fans Included – Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. The included ARGB controller allows users to manage systems lighting independently from the hardware configuration if needed.
  • Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

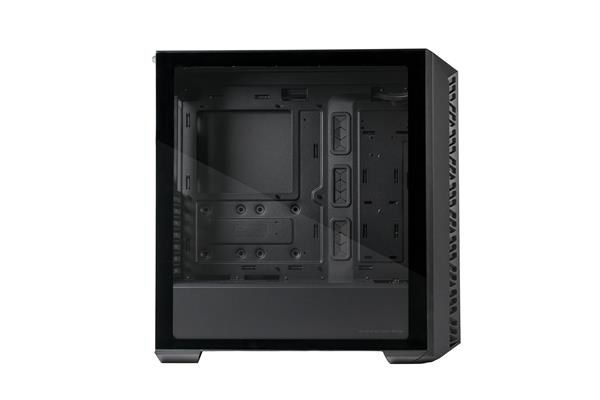

  • Screwless & Tool-Free TG Side Panel – The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
  • Versatile Cooling Options – Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
  • Removable HDD cage – The HDD cage is completely removable for improved access during assembly and system upgrades.
  • Upgraded Removable Dust Filter Bracket – The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.

TECHNICAL SPECIFICATIONS

Product Number MB520-KGNN-S00
Exterior Color Black
Material Exterior - Mesh, Steel, ABS Plastic, Tempered Glass
Left Side Panel - Tempered Glass
Dimensions (L x W x H) incl. Protrusions - 502x 210 x 498mm
Body size - 443x 210 x 498mm
Volume 50L
Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX*
(*up to 12” x 10.7” motherboards, may impact cable management feature)
Expansion Slots 7
Drive Bays 5.25" ODD - 0
3.5" HDD - 2
2.5" SSD - 3
I/O Panel USB Ports - 1 x USB 3.2 Gen1 Type-A + 1x USB 3.2 Gen2 Type-C
Audio In / Out - 1x 3.5mm Headset Jack (Audio + Mic)
Others - 1x RESET/ARGB button
Included Accessories ARGB Fans Hub
Included Fan(s) Top - N/A
Front - 3 x CF120 ARGB
Rear - N/A
Fan Support Top - 3 x 120mm / 2 x 140mm
Front - 3 x 120mm / 2 x 140mm
Rear - 1 x 120mm
Radiator Support Top - 120/140/240/280/360mm (recommended maximum thickness - 55mm)
Front - 120/140/240/280/360mm
Rear - 120 mm
Clearances CPU Cooler - 165mm / 6.49”
Power Supply - 200mm (Recommended up to 170mm)
Graphics Card - 410mm / 16.10”
Dust Filters Bottom, Front, Top
Power Supply Support ATX
Warranty 2 Years

.
