CHIEFTEC zdroj Chieftronic PowerUp GPX-850FC, 850W ATX,80PLUS GOLD,cable-mgt,retail
Kód: 1022613Na dotaz
Termín a způsob doručení
Výkon zdroje (ve W):850; Formát zdroje:ATX; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Modulární kabeláž; Efektivita zdroje:80 Plus Gold; Vlastnosti zdroje:Modulární kabeláž.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022613
EAN:
753263077202
Záruka:
60 Měsíc(ů)
Formát zdroje:
ATX
Konektory:
PCIe 8-pin, Molex, SATA 15-pin, FDD
Konektory pro základní desku:
ATX 20-pin, ATX 24-pin, EPS 8-pin
Vlastnosti zdroje:
Modulární kabeláž
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ano
Výkon zdroje (W):
850

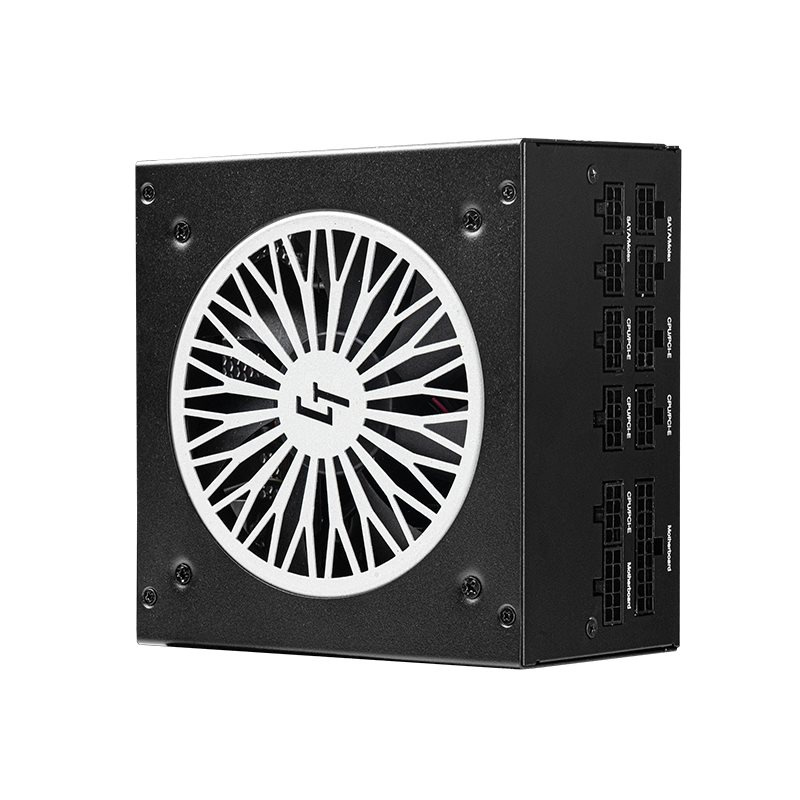

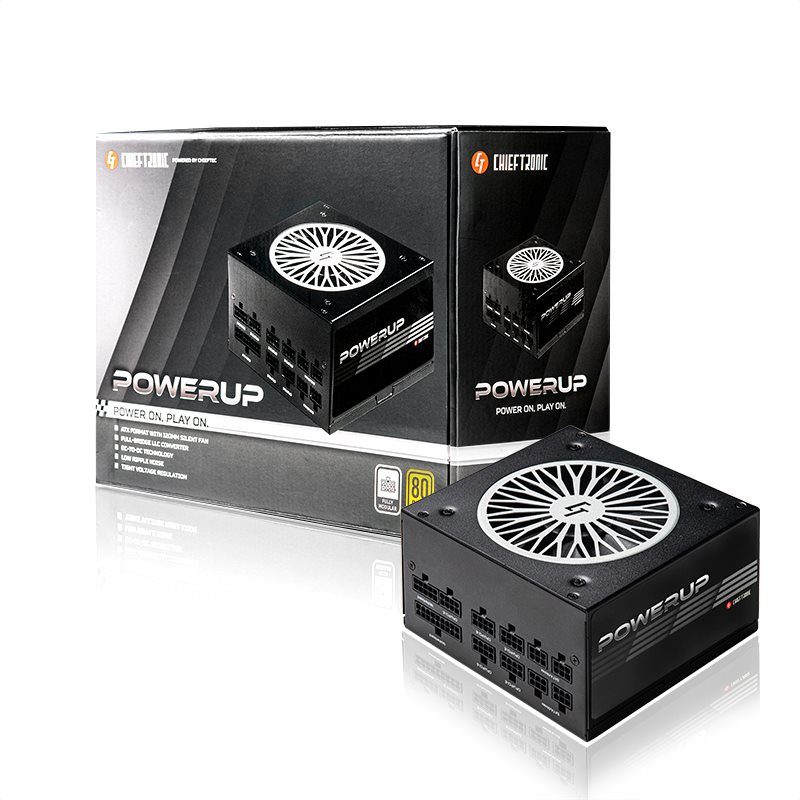

Popis CHIEFTEC zdroj Chieftronic PowerUp GPX-850FC, 850W ATX,80PLUS GOLD,cable-mgt,retail
GPX-850FC
- 80 PLUS® Gold certified efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
SPECIFICATIONS
Performance
.| Model | PowerUp 850W |
| Article no. | GPX-850FC |
| EAN code | 0753263077202 |
| Weight (without/with package) | 2.4 kg / 2.95 kg |
| AC Input | 100 - 240V / 12.0A |
| Frequency | 47 - 63Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 110W |
| +12V | 70.5A/846W |
| -12V | 0.3A / 3.6W |
| +5VsB | 2.5A / 12.5W |
| Maximum Power | 850W |
Connectors
| 20+4PIN ATX | 1 |
| 8 PIN CPU (4+4) | 2 |
| 8 PIN PCIe (6+2) | 6 |
| SATA | 9 |
| MOLEX | 3 |
| FLOPPY | 1 |
Cable length
| 20+4PIN ATX | 650 |
| 8 PIN CPU (4+4) | 650/150 |
| 8 PIN PCIe (6+2) | 3x 500/150 |
| SATA | 3x 500/150/150 |
| MOLEX | 500/150/150/150 |
| FLOPPY | Molex |
Features
| ATX 12V Version | v2.53 |
| Efficiency | 80 PLUS Gold |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC |
| Fan | 120mm silent fan |
| Security |
|
| Warranty | 60 Months |
