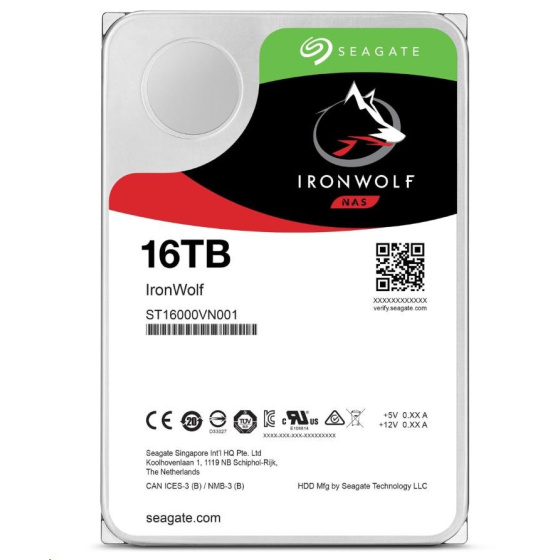

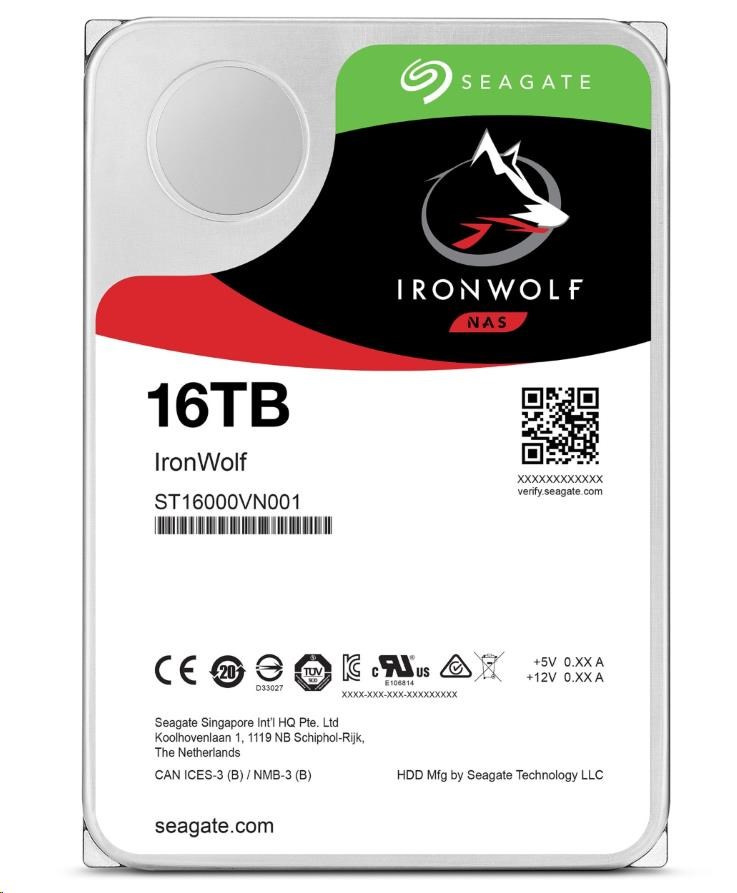

IronWolf
IronWolf™ is designed for everything NAS. Get used to tough, ready and scalable 24×7 performance that can handle multi-drive environments across a wide range of capacities.
Key Advantages
TECHNICAL SPECIFICATIONS
| SPECIFICATIONS | |
| Standard Model Numbers | ST16000VN001 |
| Capacity | 16TB |
| Inteface | SATA 6Gb/s |
| FEATURES and PERFORMANCE | |
| Drive Bays Supported | 1-8 Bays |
| Multi-User Technology | 180TB/year |
| Rotational Vibration (RV) Sensor | yes |
| Dual-Plane Balance | yes |
| Error Recovery Control | yes |
| Max. Sustained Transfer Rate OD (MB/s) | 210MB/s |
| Spindle Speed (RPM) | 7200 |
| Cache (MB) | 256 |
| RELIABILITY | |
| Load/Unload Cycles1 | 600,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E15 |
| Power-On Hours | 8760 |
| Workload Rate Limit (WRL) | 180 |
| Mean Time Between Failures (MTBF, hours) | 1,000,000 |
| Limited Warranty (years) | 3 |
| POWER MANAGEMENT | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 7.3W |
| Idle Average (W) | 5.3W |
| Standby Mode/Sleep Mode, Typical (W) | 0.8/0.8 |
| Voltage Tolerance, Inc. Noise (5V) | ±5% |
| Voltage Tolerance, Inc. Noise (12V) | ±10% |
| ENVIRONMENTAL/TEMPERATURE | |
| Operating (ambient, min °C) | 5 |
| Operating (drive case, max °C)2 | 70 |
| Nonoperating (ambient, min °C) | -40 |
| Nonoperating (ambient, max °C) | 70 |
| Halogen Free | yes |
| ENVIRONMENTAL/SHOCK | |
| Shock, Operating/Nonoperating: 2ms (max) | 50Gs/200Gs |
| ENVIRONMENTAL/ACOUSTICS | |
| Idle (typical)3 | 2.8bels |
| Operating (typical) | 3.0bels |
| PHYSICAL | |
| Height (mm/in) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 146.99mm/5.787in |
| Weight (g/lb) | 670g/1.477lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet/Cartons per Layer | 40 / 8 |
1 Load/unload tested to 600,000 cycles.
2 Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product.
3 Idle measured in Idle 1 state.
