BAZAR - GIGABYTE MB Sc AM4 A520M DS3H V2, AMD A520, 4xDDR4, 1xHDMI, 1xDP, mATX - Po opravě (Bez příšlušenství)
Kód: 524963Skladem1ks
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
524963
EAN:
524963
Záruka:
6 Měsíc(ů)
Stav:
Bazar
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Formát základní desky:
micro ATX
Chipset:
AMD A520
PCI Express x16:
1
Podpora RAID:
1, 10
COM port:
Ne
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
USB 2:
6
USB 3:
6
M.2 slot:
1
SATA 3:
4
HDMI:
1
Led Header:
Ne
PCI Express x1:
1
LAN:
1Gbit/s
Popis BAZAR - GIGABYTE MB Sc AM4 A520M DS3H V2, AMD A520, 4xDDR4, 1xHDMI, 1xDP, mATX - Po opravě (Bez příšlušenství)
oprava poskozene patice
.
, ,

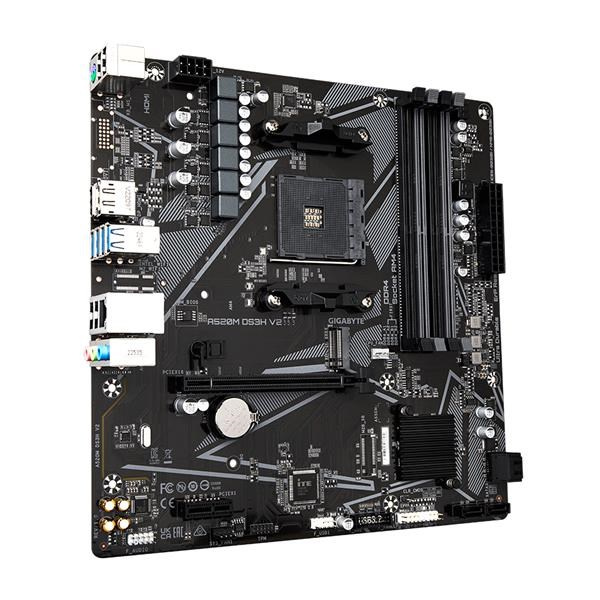

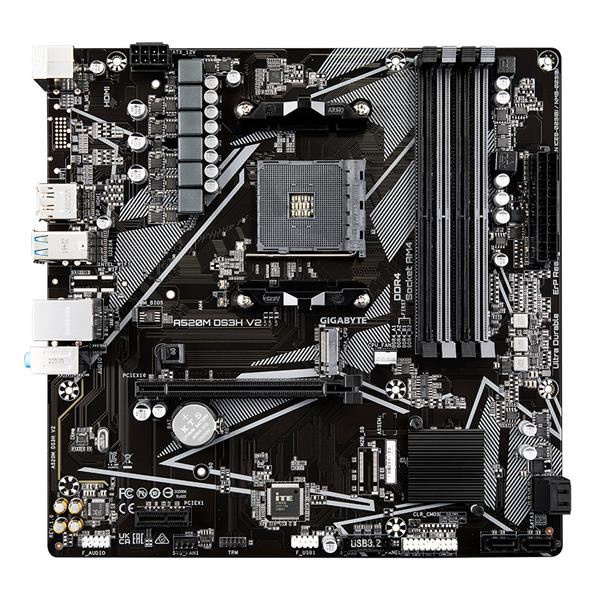

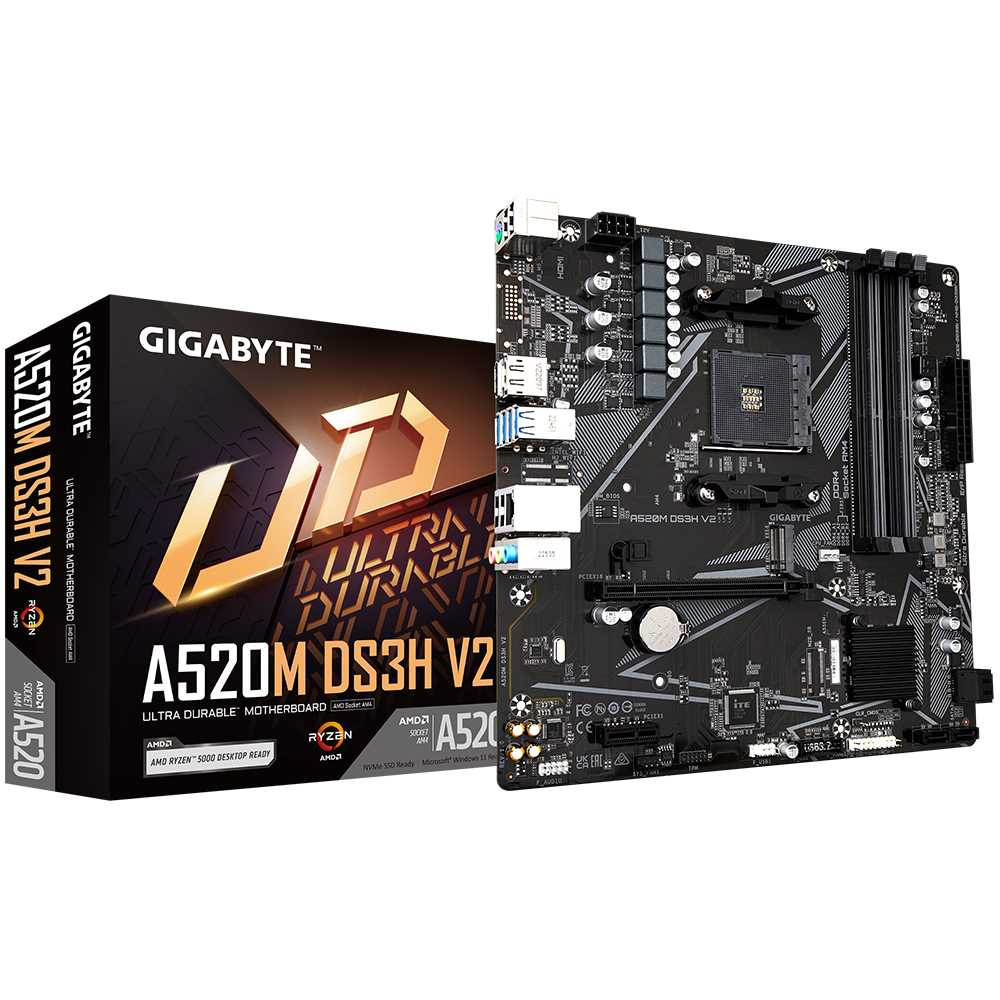

GIGABYTE A520M DS3H V2
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset
AMD A520
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphics
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Expansion Slots
1 x PCI Express x16 slot, integrated in the CPU:
Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Supporting for RAID 0, RAID 1, and RAID 10
Ethernet
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Back Panel I/O Ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
, ,
