ASUS zdroj TUF Gaming 750W Gold, 750W, 80+ Gold

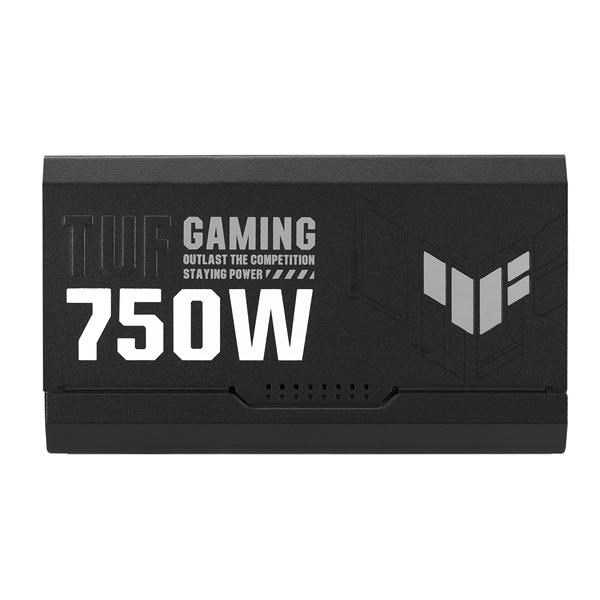

TUF Gaming 750W Gold

The TUF Gaming 750W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• A protective PCB coating protects against moisture, dust, and extreme temperatures.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

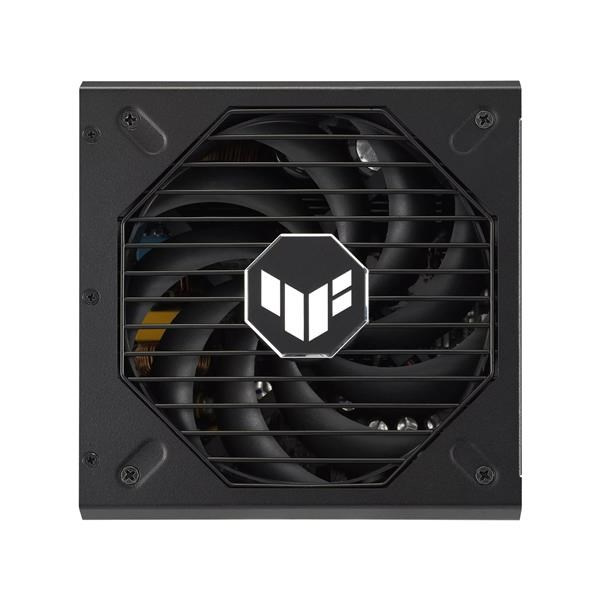

• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Fully modular etched cables keep your rig neat and tidy.
• 10-year warranty included.

Model

TUF Gaming 750W Gold

Intel Form Factor

ATX12V

ATX 3.0

Yes

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A25A62A 0.8A 3A

Combined Load

130W 130W 744W 9.6W 15W

Total Output

750W

Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1

Weight

2.38kg (single PSU)

0dB Fan Button

No
