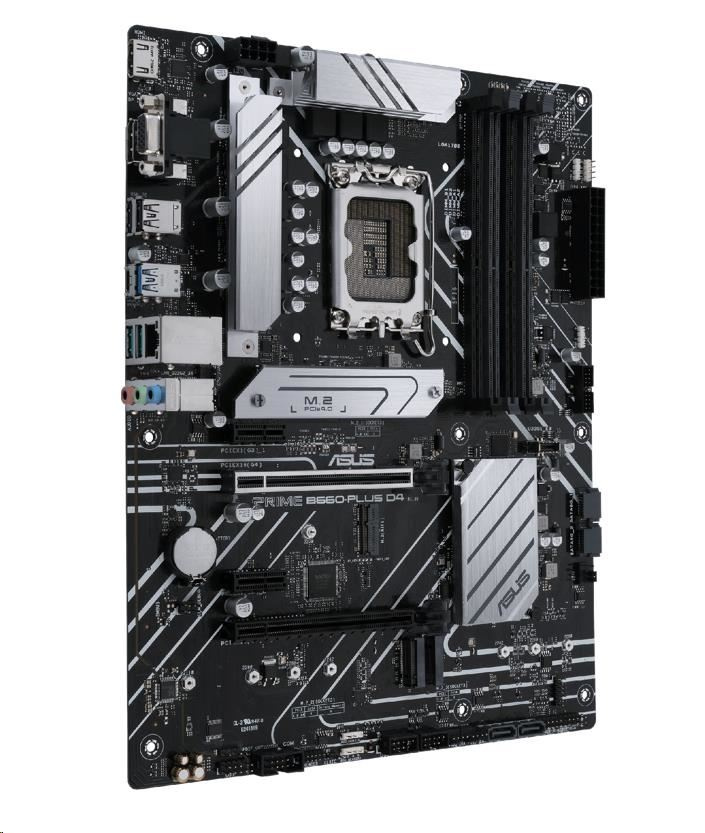

ASUS MB Sc LGA1700 PRIME B660-PLUS D4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, 1xVGA
Kód: 1887313Na dotaz
Termín a způsob doručení
Formát základní desky:ATX; Chipset:Intel B660; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR4; PCI Express x16:1; 3.5mm Jack.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887313
EAN:
4711081523017
Záruka:
36 Měsíc(ů)
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1700
Formát základní desky:
ATX
Chipset:
Intel B660
PCI Express x16:
1
3.5mm Jack:
Ano
Pro procesory:
Intel
Popis ASUS MB Sc LGA1700 PRIME B660-PLUS D4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, 1xVGA
PRIME B660-PLUS D4
TECHNICAL SPECIFICATIONS
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem | |
| *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x D-Sub port | |
| 1 x HDMI® port*** | |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| ***Supports 4K@60Hz as specified in HDMI 2.1. | |
| **** VGA resolution support depends on processors' resolution. | |
| Expansion Slots | Intel® 12th Gen Processors |
| 1 x PCIe 4.0 x16 slot | |
| Intel® B660 Chipset* | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 2 x PCIe 3.0 x1 slots | |
| * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot | |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| - Intel® 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel® B660 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 6 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Audio Features | |
| - Audio Shielding | |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x D-Sub port | |
| 1 x HDMI® port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 2 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x M.2 slot (Key E) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt™ header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core+ | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| AURA Sync | |
| - AURA RGB headers | |
| - Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Creator | |
| - AURA Sync | |
| - Fan Xpert 2+ | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI+ VRM | |
| ASUS CPU-Z | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x M.2 Rubber Package | |
| 2 x M.2 SSD screw packages | |
| 1 x M.2 Key E screw package | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
