ASUS MB Sc AM4 PRO B550M-C/CSM, AMD B550, 4xDDR4, 2xDP, 1xHDMI, mATX
Kód: 431233Na dotaz
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:AMD B550, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:2; PCI:1; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:2; HDMI:1; VGA:0; DVI:0; USB 2:5; USB 3:7; USB C:1; COM port; LPT port.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
431233
EAN:
4718017992336
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Formát základní desky:
micro ATX
Chipset:
AMD, AMD B550
PCI Express x16:
2
Podpora RAID:
1, 10
COM port:
Ano
LPT port:
Ano
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
4
DisplayPort:
2
TPM:
Ne
USB 2:
5
USB 3:
7
PCI:
1
M.2 slot:
2
SATA 3:
4
HDMI:
1
Led Header:
Ne
USB C:
1
LAN:
1Gbit/s
Popis ASUS MB Sc AM4 PRO B550M-C/CSM, AMD B550, 4xDDR4, 2xDP, 1xHDMI, mATX

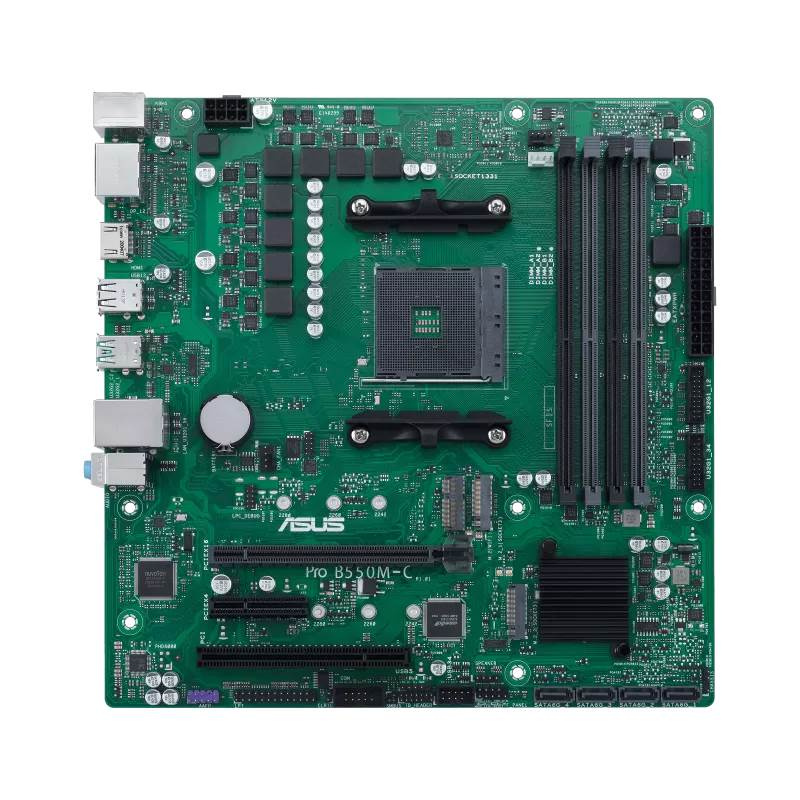

ASUS Pro B550M-C/CSM
AMD B550 (Ryzen AM4) micro ATX business motherboard with enhanced security, reliability and manageability. Dual M.2, PCIe 4.0, 1 Gb Ethernet, dual DP/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®.
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-C®
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *
* Refer to www.asus.com for CPU support list
Chipset
AMD B550
Memory
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
2 x DisplayPort
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode) *
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x4 *1
1 x PCI
* Support PCIe bifurcation for RAID on CPU function.
Storage
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Ethernet
Realtek RTL8111H 1Gb Ethernet
USB
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
3 x USB 2.0 port(s)
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Back Panel I/O Ports
1 x Realtek® RTL8111H
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
2 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Connectors
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 with E key for Wi-Fi module
1 x LPT header
4 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x SMBus header(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Chassis intrusion header
1 x LPC Debug header
1 x Speaker connector
Special Features
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM2.0 IC Onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PXE

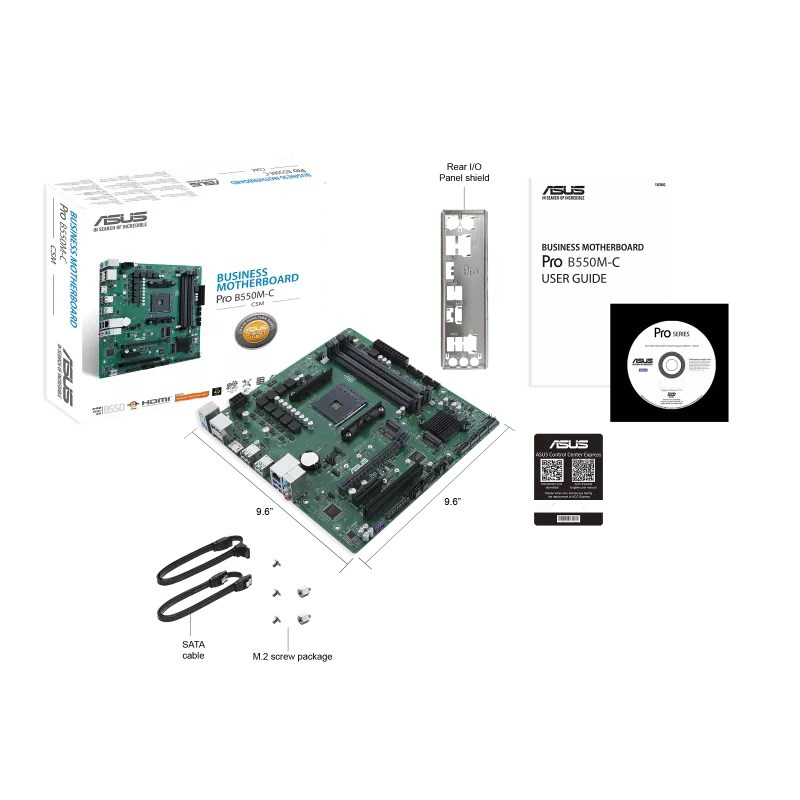

Accessories
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
User manual
3 x M.2 SSD screw package(s)
2 x M.2 SSD Hex screw packages
Operating System
Windows® 10 64-bit
Form Factor
mATX Form Factor
24.4 cm x 24.4 cm
, ,
