ASRock MB Sc sTR5 WRX90 WS EVO, AMD WRX90, 8xDDR5, 1xDP, EEB
Kód: 1883063Na dotaz
Termín a způsob doručení
Formát základní desky:EEB; Chipset:AMD WRX90; Socket (patice):Socket TRX5; Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:8; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:7; PCI Express x8:0; PCI Express x1:0; PCI:0; LAN:10Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:0; VGA:1; DVI:0; DisplayPort Type-C:0.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1883063
EAN:
4710483945199
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket TRX5
Formát základní desky:
EEB
Chipset:
AMD WRX90
PCI Express x16:
7
Podpora RAID:
1, 10
COM port:
Ano
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
8
DisplayPort:
1
TPM:
Ne
USB 2:
4
USB 3:
8
M.2 slot:
2
SATA 3:
4
VGA:
1
Led Header:
Ano
USB C:
3
LAN:
10Gbit/s
Popis ASRock MB Sc sTR5 WRX90 WS EVO, AMD WRX90, 8xDDR5, 1xDP, EEB

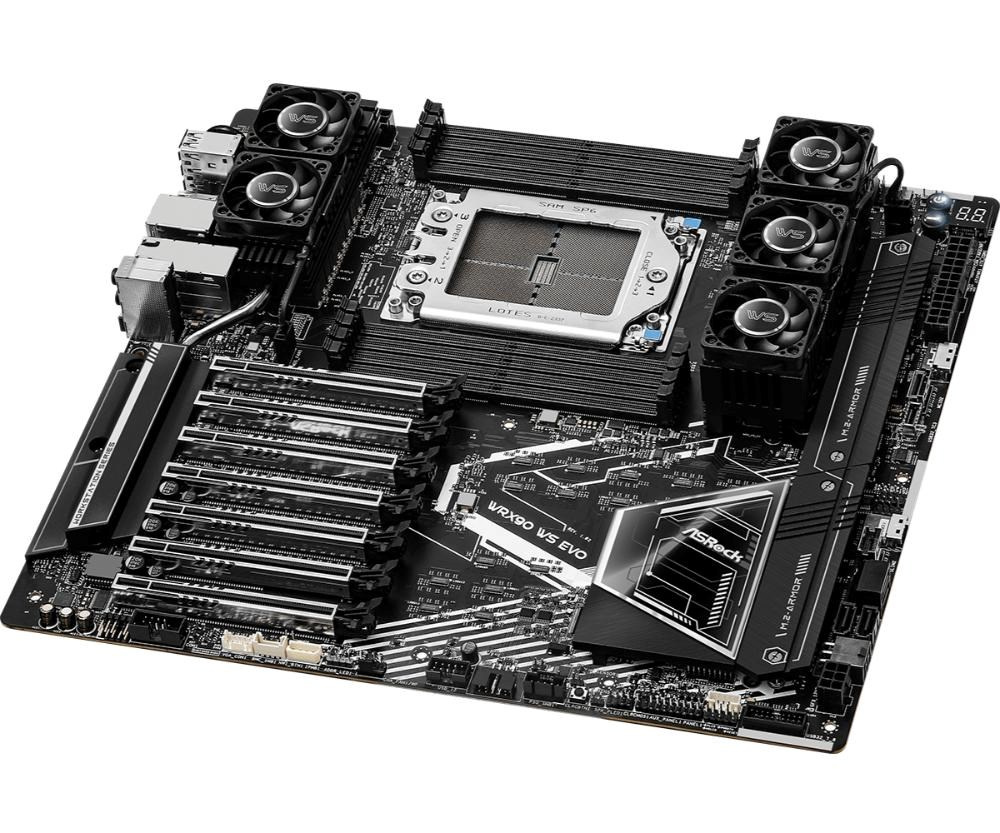

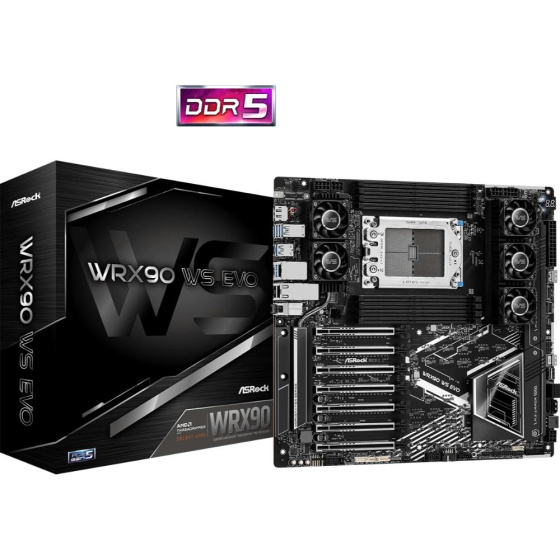

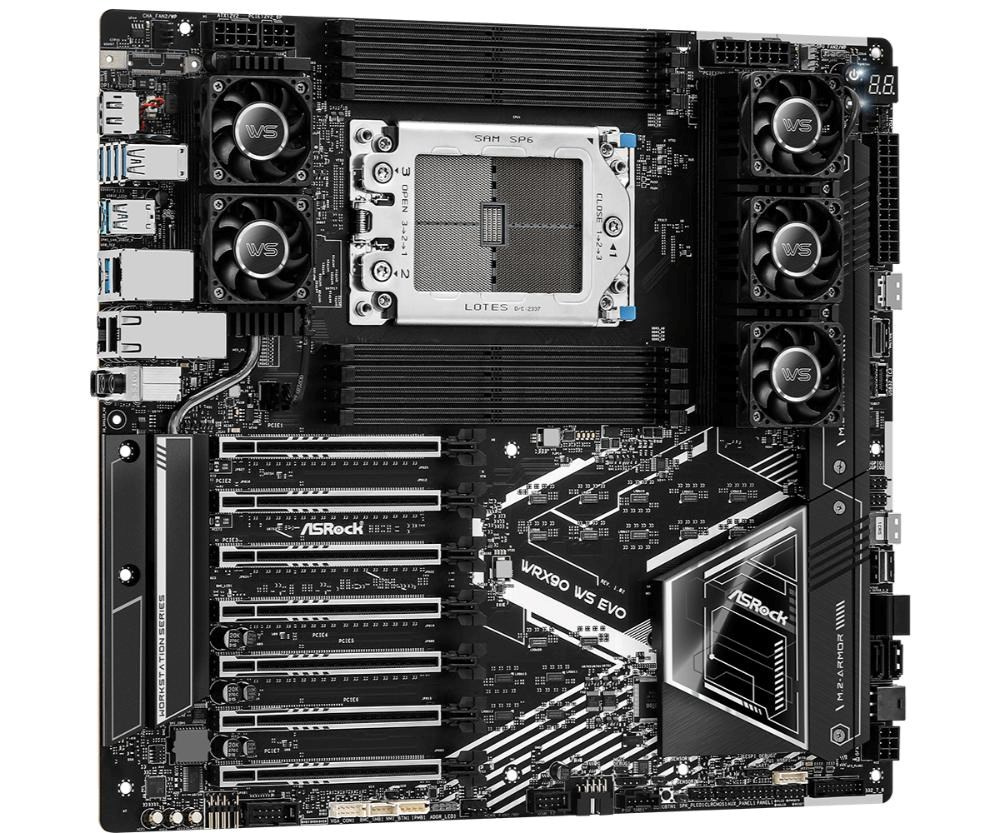

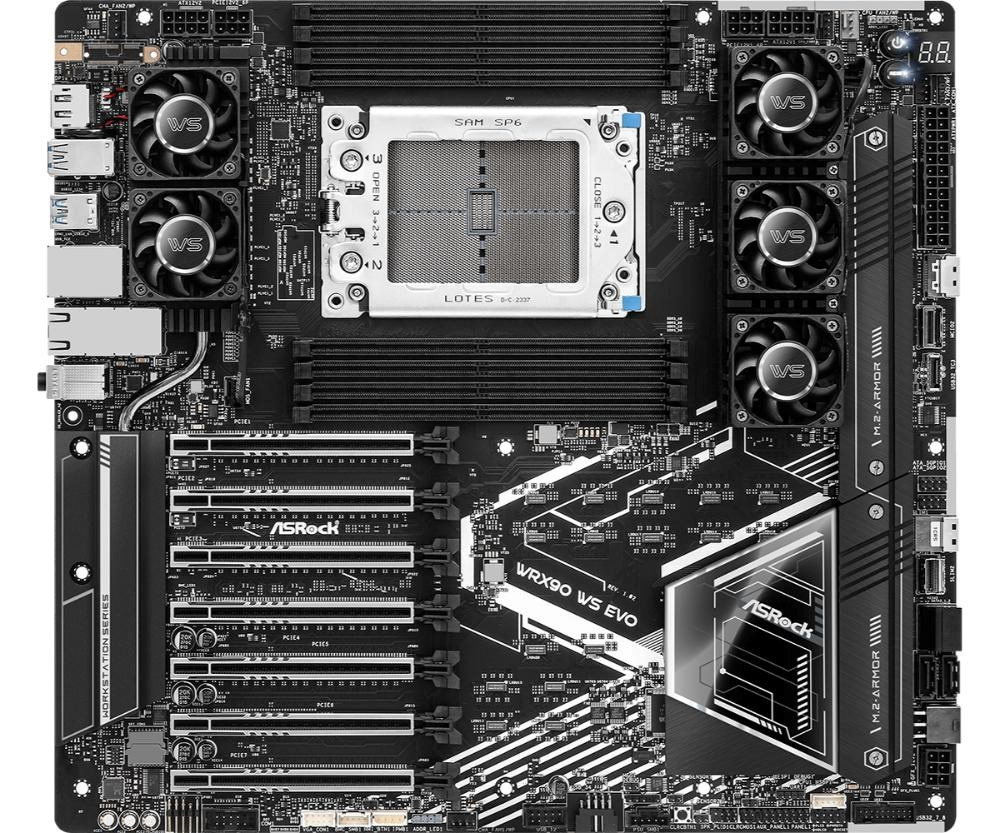

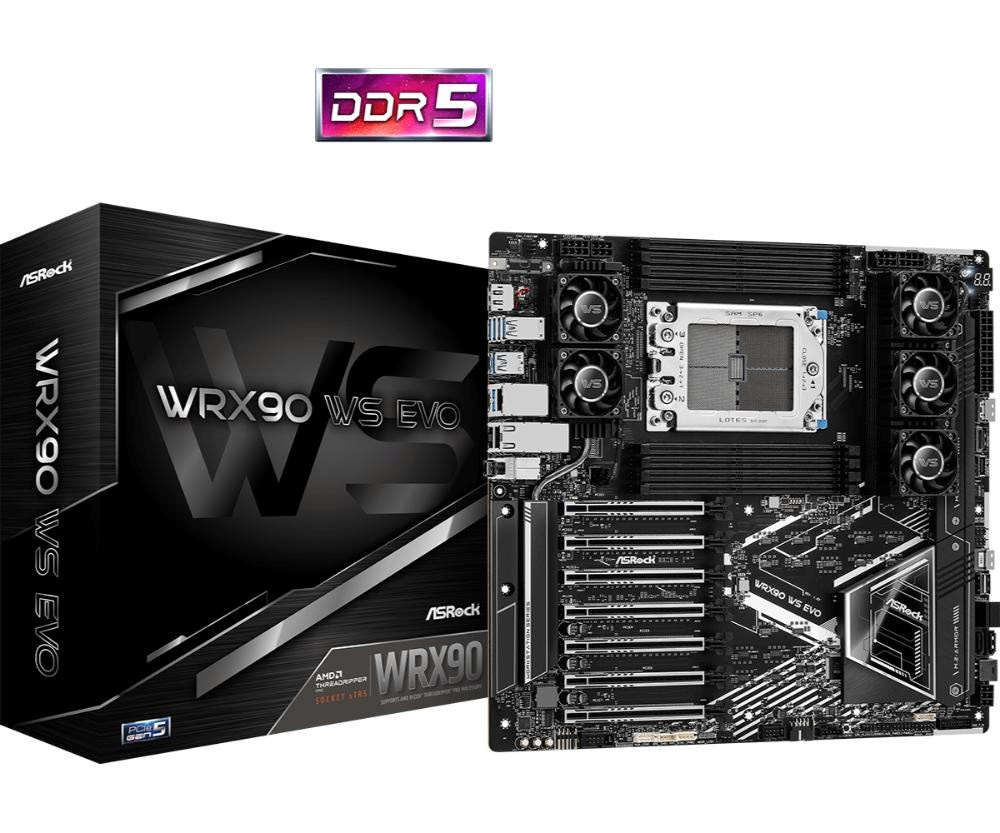

ASRock WRX90 WS EVO
Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Eight Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- Ultra Low-Loss PCB
- 18+3+3 Power Phase, 110A SPS for VCore
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- Dual Intel® 10G LAN
EZ Update
- ASRock Auto Driver Installer
CPU
- Supports AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors
- Supports AMD Socket sTR5
- Supports ASRock Hyper BCLK Engine
Chipset
- AMD WRX90
Memory
- Eight Channel DDR5 Memory Technology
- 8 x DDR5 DIMM Slots*
- Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
- Max. capacity of system memory: 2TB
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Aspeed AST2600 BMC Controller
- 1 x DisplayPort 1.1a with max. resolution up to 1920x1200 @ 60Hz*
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
LAN
2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2)
- Support PXE
1 x Dedicated IPMI (Realtek RTL8211F)
Slots
CPU:
- 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*
- 15µ Gold Contact in VGA PCIe Slots
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
- 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
- 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4)
- 4 x SATA3 6.0 Gb/s Connectors
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
CPU:
- 2 x USB4 Type-C (Rear)
- 4 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 4 x USB 2.0 (Front)
Internal I/O
- 2 x Thermistor Cable Headers
- 1 x Front VGA Header
- 1 x COM Port Header
- 1 x Power LED and Speaker Header
- 1 x Intelligent Platform Management Bus Header
- 1 x PSU SMBus Header
- 1 x BMC SMBus Header
- 1 x Auxiliary Panel Header
- 2 x Addressable LED Headers*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 3 pin ATX Power Connector*****
- 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
- 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
- 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*******
- 1 x Right Angle Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- 2 x SGPIO Headers
- 1 x CPU HP-SMBus Connector
- 1 x Non Maskable Interrupt Button Header
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
- 1 x Clear CMOS Button
Rear Panel I/O
- 1 x DisplayPort 1.1a
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)*
- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 2 x USB 3.2 Gen1 Type-A Ports
- 2 x RJ-45 LAN Ports
- 1 x RJ45 Dedicated IPMI LAN Port
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI
Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 4 x SATA Data Cables
- 2 x Thermistor Cables
- 1 x Multi PSU Adaptor Cable
- 2 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets
Form Factor
- EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm
- 14 Layer PCB
- 2oz Copper PCB
OS
- Microsoft Windows® 11 64-bit
OS
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- CEC Tier II ready
, ,
