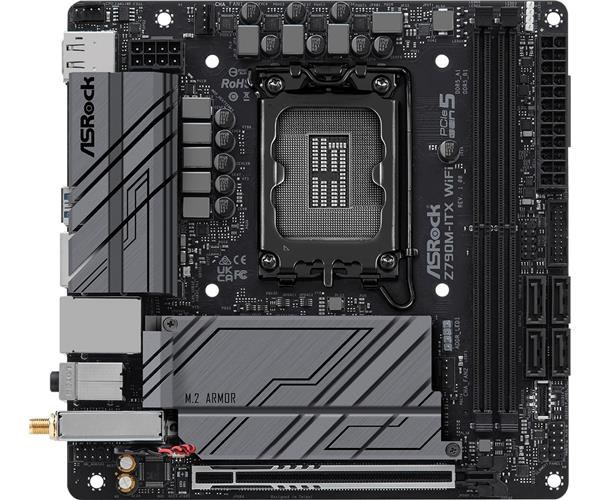

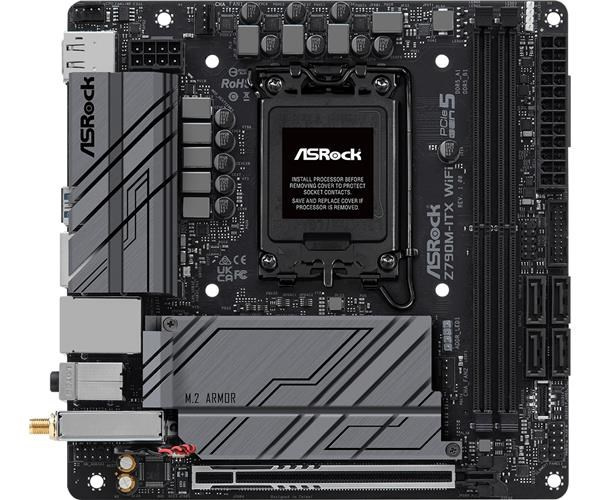

ASRock MB Sc LGA1700 Z790M-ITX WIFI, Intel Z790, 2xDDR5, 1xDP, 1xHDMI, WI-FI, mini-ITX
Kód: 380809Skladem1ks
Termín a způsob doručení
Formát základní desky:Mini-ITX; Chipset:Intel Z790; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:2; SATA 3:4; Podpora RAID:0, 1, 5; PCI Express x16:1; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; 3.5mm Jack.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
380809
EAN:
4710483941054
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1700
Formát základní desky:
Mini-ITX
Chipset:
Intel Z790
PCI Express x16:
1
Podpora RAID:
1, 5
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
2
DisplayPort:
1
SATA 3:
4
HDMI:
1
Popis ASRock MB Sc LGA1700 Z790M-ITX WIFI, Intel Z790, 2xDDR5, 1xDP, 1xHDMI, WI-FI, mini-ITX
Z790M-ITX WiFi
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 7+1+1 Phase Power Design, Dr.MOS for VCore+GT
- 2 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
- Intel® 2.5G LAN, Intel® 1G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
Unique Feature
Superb Productivity
- PCIe Gen5 (Graphic)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
CPU
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
Chipset
- Intel® Z790
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
*1DPC 1R Up to 6800+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN
- 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
- 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
*Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 5
USB
- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 4 x USB 3.2 Gen2 Type-A (Rear)
- 2 x USB 3.2 Gen1 (Front)
- 3 x USB 2.0 (1 Rear, 2 Front)
*All USB ports support ESD Protection
Connector
- 1 x eDP Signal Connector
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2 x Chassis Fan Connectors (4-pin)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****
*Supports in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***CPU_FAN1/WP supports the fan power up to 2A (24W).
CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
****CHA_FAN1~2 support the fan power up to 1A (12W).
*****Actual speed depends on USB devices and extension cable in the chassis.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 2.0 Port
- 2 x RJ-45 LAN Ports
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8 Layer PCB
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
, ,
