ASRock MB Sc LGA1200 H510M-H2/M.2 SE, Intel H470, 2xDDR4, 2xHDMI, mATX
Kód: 380929Na dotaz
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:Intel H470; Socket (patice):Socket 1200; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:2; VGA:0; DVI:0; USB 2:6; USB 3:6; USB C:0; Led Header; TPM.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
380929
EAN:
4710483944192
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket 1200
Formát základní desky:
micro ATX
Integrovaná grafická karta:
Ne
Chipset:
Intel H470
PCI Express x16:
1
Integrovaná LAN karta:
1
Podpora RAID:
1, 10, 5
COM port:
Ne
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Počet paměťových slotů:
2
TPM:
Ano
USB 2:
6
USB 3:
6
M.2 slot:
1
SATA 3:
4
HDMI:
2
Led Header:
Ano
PCI Express x1:
1
LAN:
1Gbit/s

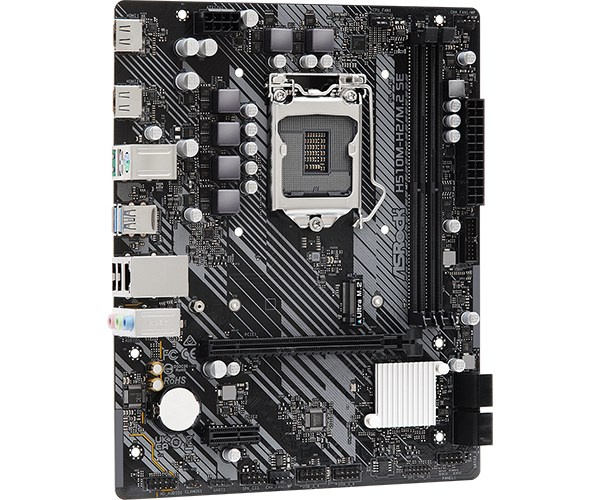

Popis ASRock MB Sc LGA1200 H510M-H2/M.2 SE, Intel H470, 2xDDR4, 2xHDMI, mATX
ASRock H510M-H2/M.2 SE
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
- 4 Power Phase Design
- Supports DDR4 3200 MHz*
- Intel® H470 Chipset
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
Unique Features
Rock-Solid Durability
- 4 Power Phase
EZ Update
- ASRock Auto Driver Installer
CPU
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® H470
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15µ Gold Contact in DIMM Slots
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- 2 x HDMI
Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Slots
Intel® 11th Gen & 10th Gen Processors:
- 1 x PCIe 4.0 x16 Slot (PCIE1)*
Intel® H470 Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)**
Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Internal I/O
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

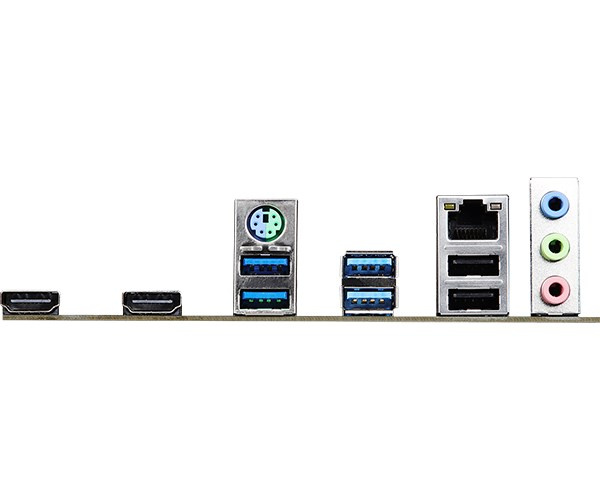

Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 2.0 Ports
- 4 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Form Factor
- Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm
, ,
