ASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP
Kód: 380620Skladem>5ks
Termín a způsob doručení
Formát základní desky:Mini-ITX; Chipset:AMD A520, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:0; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:Wi-Fi, WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; USB 2:4; USB 3:6.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
380620
EAN:
4710483932045
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Formát základní desky:
Mini-ITX
Chipset:
AMD, AMD A520
PCI Express x16:
1
Podpora RAID:
1, 10
COM port:
Ne
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
Wi-Fi, WiFi + Bluetooth
Pro procesory:
AMD
Počet paměťových slotů:
2
DisplayPort:
1
TPM:
Ne
USB 2:
4
USB 3:
6
M.2 slot:
1
SATA 3:
4
HDMI:
1
Led Header:
Ano
USB C:
1
LAN:
1Gbit/s
Popis ASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP

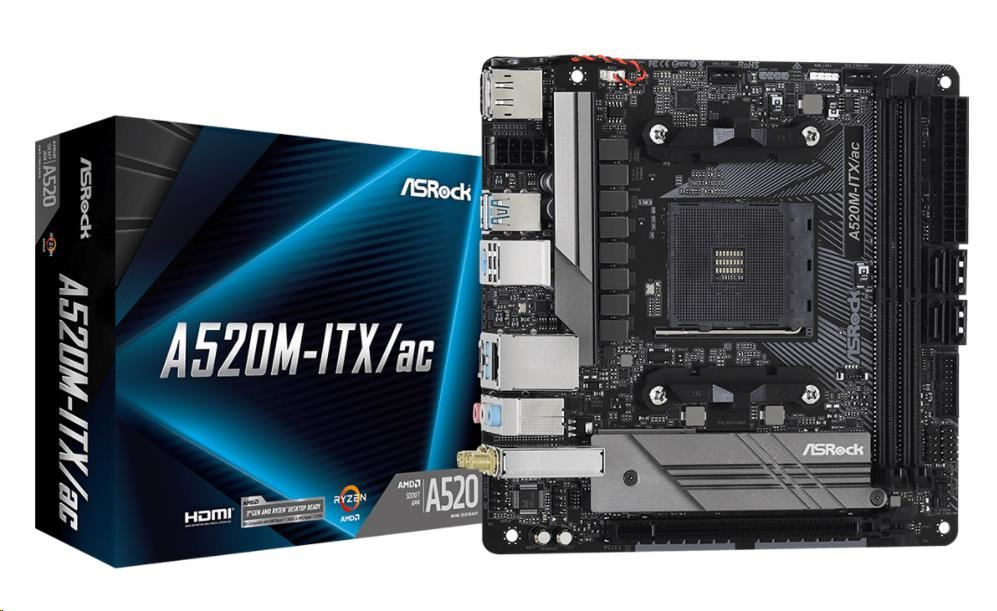

A520M-ITX/ac
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
- Supports DDR4 4733+ (OC)
- 1 x PCIe 3.0 x16
- Graphics Output: DisplayPort, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 x Rear Type-C)
- Realtek Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
TECHNICAL SPECIFICATIONS
| Unique Feature | ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB Intel® 802.11ac WiFi ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)* *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. |
| Chipset | - AMD A520 |
| Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots |
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. |
| Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* *AMD Ryzen series CPUs (Matisse) supports PCIe riser cards to extend x8/x8 slots |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug *Supports NVMe SSD as boot disks |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Wireless LAN | - Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 + High speed class II |
| Connector | - 1 x RGB LED Header* *Supports in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |

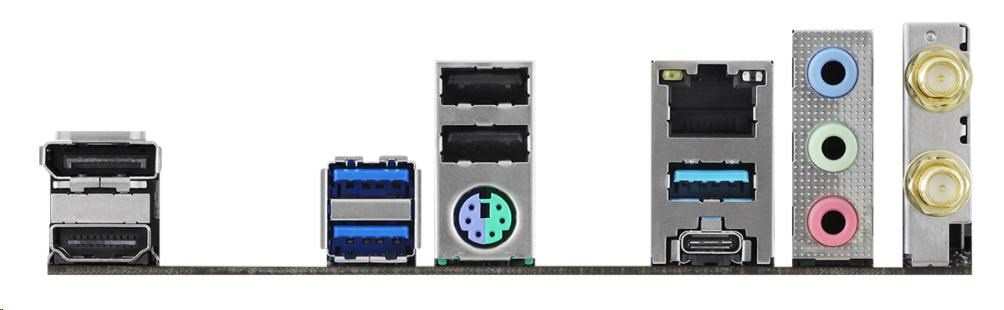

| Rear panel I/O | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas |
| Hardware Monitor | - Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Operating System | - Microsoft® Windows® 10 64-bit |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
.
, ,
