ASRock MB Alder Lake-N N100DC-ITX, Intel N100, 1xDDR4, 1xHDMI, 1xVGA, mITX
Kód: 380943Skladem>5ks
Termín a způsob doručení
Formát základní desky:Mini-ITX; Chipset:Intel; Pro procesory:Integrovaný procesor; Technologie paměti RAM:DDR4; Počet paměťových slotů:1; M.2 slot:1; SATA 3:2; Podpora RAID:Bez RAID podpory; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:1; DVI:0; USB 2:8; USB 3:4; USB C:0; TPM; 3.5mm Jack.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
380943
EAN:
4710483943188
Záruka:
36 Měsíc(ů)
Technologie paměti RAM:
DDR4
Formát základní desky:
Mini-ITX
Chipset:
Intel
Podpora RAID:
Bez RAID podpory
COM port:
Ne
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
Integrovaný procesor
Počet paměťových slotů:
1
DisplayPort:
0
TPM:
Ano
USB 2:
8
USB 3:
4
PCI:
0
M.2 slot:
1
SATA 3:
2
VGA:
1
DVI:
0
HDMI:
1
Led Header:
Ne
USB C:
0
LAN:
1Gbit/s
Popis ASRock MB Alder Lake-N N100DC-ITX, Intel N100, 1xDDR4, 1xHDMI, 1xVGA, mITX

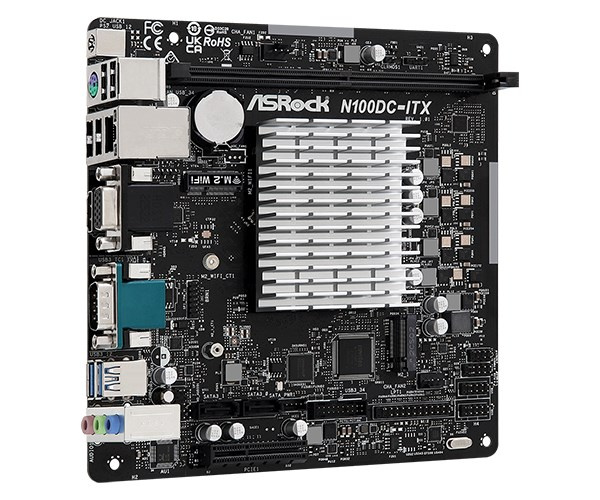

ASRock N100DC-ITX
- Intel® Quad-Core Processor N100 (up to 3.4 GHz)
- Supports 1 DDR4 DIMM
- 1 DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 2 SATA3, 1 M.2 (PCIe Gen3x2)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
CPU
- Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel® Turbo Boost Technology
Memory
- 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB
Graphics
- Integrated Intel® UHD Graphics: 24 EUs inside (Up to 750MHz)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Slots
- 1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode*
- 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVio (Integrated WiFi/BT)
Storage
- 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
USB
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Internal Connector
- 1 x Print Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis Fan Connectors (4-pin)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
- 1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x SATA Power Cable
- 2 x Screws for M.2 Sockets
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Unique Feature
Rock-Solid Durability
- 2+1+1 Power Phase EZ Update
- ASRock Auto Driver Installer
