5 x Aruba Instant On 1960 48G (40p CL4, 8p CL6 PoE) 2XGT 2SFP+ 600W Switch ( 5 x JL805A)
Kód: 1881072Skladem1ks
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:VLAN (virtual local area network), L2; Technologie:Gigabit Ethernet + možnost 10 GbE portů, Gigabit Ethernet 1000Mbps, Gigabit optika; Počet SFP portů:4; Počet SFP portů:4; Maximální počet portů:12; Přenosová rychlost LAN (Mb/s):95; Maximální počet portů:12; Vlastnosti switche:Rozšiřitelnost.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1881072
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
12
Provedení:
Rack mounted 19"
Technologie:
Gigabit Ethernet + možnost 10 GbE portů, Gigabit optika, Gigabit Ethernet 1000Mbps
Vlastnosti switche:
Rozšiřitelnost
Přenosová rychlost LAN (Mb/s):
95
Funkce:
VLAN (virtual local area network), L2
Počet SFP portů:
4
Maximální počet portů:
12
Počet SFP portů:
4
Popis 5 x Aruba Instant On 1960 48G (40p CL4, 8p CL6 PoE) 2XGT 2SFP+ 600W Switch ( 5 x JL805A)
5 x Aruba Instant On 1960 48G (40p Class4, 8p Class6 PoE) 2XGT 2SFP+ 600W Switch ( 5 pack)

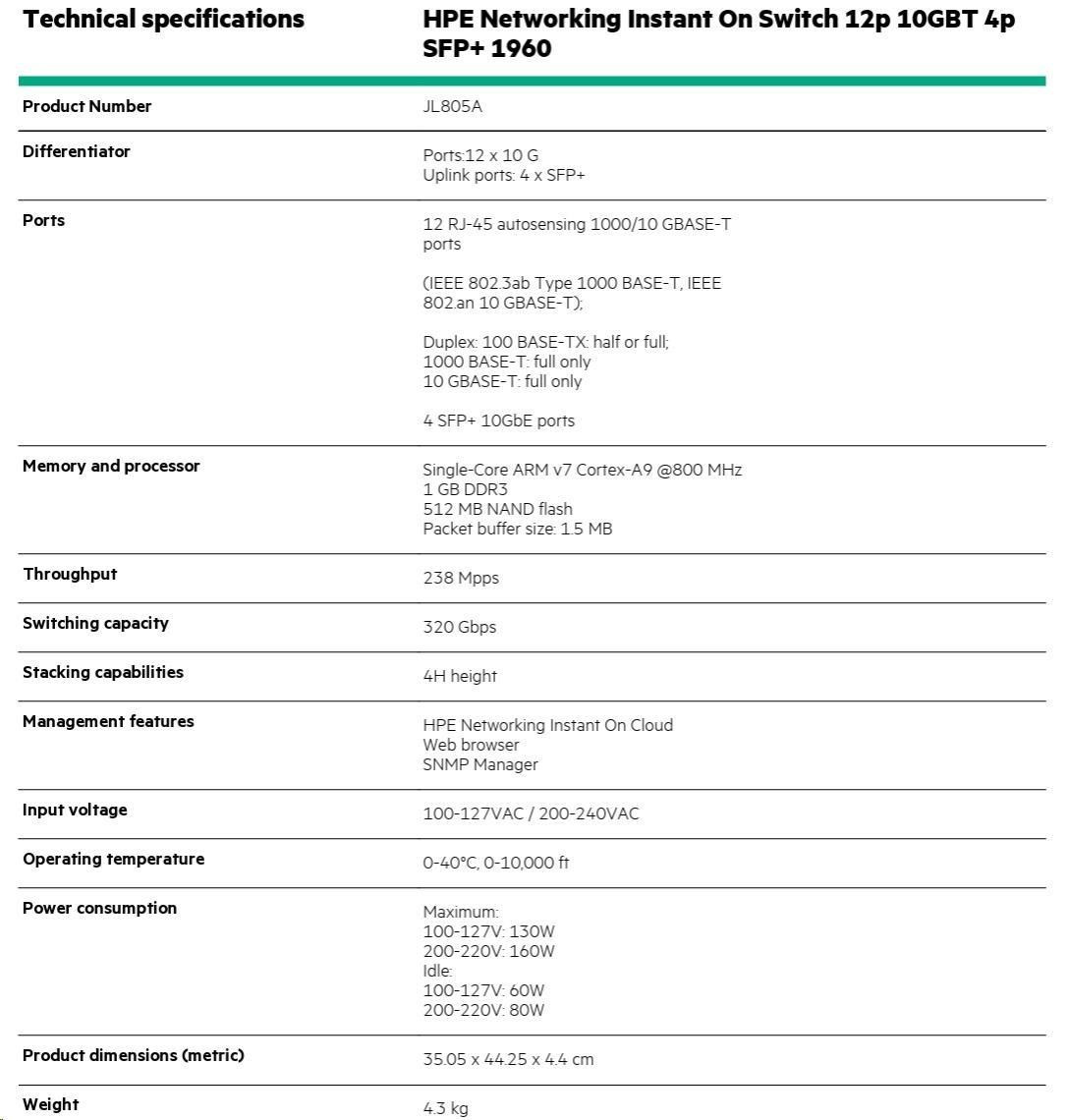

Specifications
I/O ports and slots
12 RJ-45 autosensing 100/1000/10GBASE-T ports
(IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only
4 SFP+ 10GbE ports
Dimensions
350.5(d) x 442.5(w) x 43.95(h) mm
Weight 9.6 lb (4.3 kg)
CPU
Single Core ARMv7 Cortex-A9 @2Ghz
100 Mb Latency < 7.4 uSec
1000 Mb Latency < 4.2 uSec
10000 Mb Latency < 1.1 uSec
Throughput (Mpps) 238 Mpps
Capacity 320 Gbps
Routing Table size (# of static entries) 512 IPv4/IPv6
MAC Address table size (# of entries) 16,000 entries
Reliability MTBF (years) 88.8
Operating temperature 0-40°C, 0-10,000 ft
Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing
Altitude up to 10,000 ft (3 km)
Idle
4.1
100% Traffic
4.1
100% Traffic / 0% PoE -
100% Traffic / 50% PoE -
100% Traffic / 100% PoE -
Electrical Characteristics
Frequency 50Hz/60Hz
AC voltage 100-127VAC / 200-240VAC
Current 1.3A/0.4A
Maximum power rating 100-127V: 130W 200-220V: 160W
Idle power 100-127V: 60W 200-220V: 80W
PoE power -
Power Supply
Internal power supply
Safety
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN/IEC 60825-1:2014 Class 1
Emissions
EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
Generic
EN 55035, CISPR 35, KN35
EN
EN 55035, CISPR 35
ESD
EN/IEC 61000-4-2
Radiated
EN/IEC 61000-4-3
EFT/Burst
EN/IEC 61000-4-4
Surge
EN/IEC 61000-4-5
Conducted
EN/IEC 61000-4-6
Power frequency magnetic field
EN/IEC 61000-4-8
Voltage dips and interruptions
EN/IEC 61000-4-11
Harmonics
EN/IEC 61000-3-2
Flicker
EN /IEC 61000-3-3
Device Management: Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting Positions and Supported Racking
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Transceivers
Aruba 1G SFP LC SX 500m MMF Transceiver (J4858D)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
Aruba 10G SFP+ LC SR 300m MMF Transceiver (J9150D)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
.
, ,
