ARCTIC chladič CPU Alpine 23, pro AMD AM4, 90mm
Kód: 523205Na dotaz
Termín a způsob doručení
Typ chladiče:Aktivní; Využití chladiče:Na procesory.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
523205
EAN:
4895213702829
Záruka:
24 Měsíc(ů)
Stav:
Využití chladiče:
Na procesory
Typ chladiče:
Aktivní

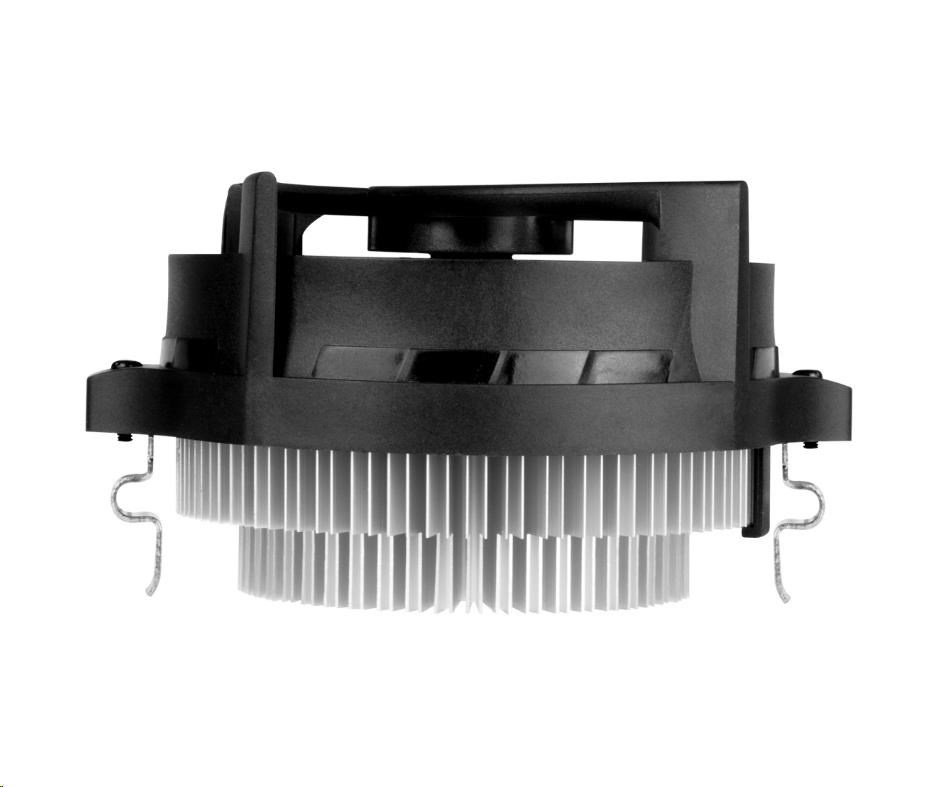

Popis ARCTIC chladič CPU Alpine 23, pro AMD AM4, 90mm
Alpine 23
Compact AMD CPU-Cooler
- IMPROVED COOLING PERFORMANCE BY NEW PRODUCTION PROCESS - The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
- WIDE RPM RANGE - The Alpine 23 features a new motor technology with a very wide, PWM-controlled RPM range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.
- LOWER POWER CONSUMPTION & MINIMUM VIBRATION - The new Alpine 23 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.
- HIGH QUALITY BEARING - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
- EXTENDED LIFE SPAN - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
- PRE-APPLIED MX-2 THERMAL PASTE - The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.
- EASY AND TOOL-FREE INSTALLATION - Thanks to the mounting clips, the installation is really easy. Alpine 23 is simply plugged onto the existing AMD retention modules and screwed tight.
TECHNICAL SPECIFICATIONS
| Compatibility | |
| AMD Socket | AM4 |
| Ram Clearance | unlimited |
| Warranty | 6 years |
| Operating Ambient Temperature | 0 - 40°C |
| Heatsink | |
| Outer Diameter | 93.4 mm |
| Fin Material | Aluminum |
| Number of Fins | 50 Y-shaped Fins |
| Thermal Paste | MX-2 pre-applied |
| Fan | |
| Fan Diameter | 90 mm |
| Fan Speed | 100 - 2000 rpm |
| Fan Bearing | Fluid Dynamic Bearing |
| Noise Level | 0.3 Sone |
| Current | 0.06 A |
| Connector | 4-Pin |
| Size & Weight | |
| Length | 98.6 mm |
| Width | 121 mm |
| Height | 65 mm |
| Weight | 275.5 |
.
, ,
